Air Compressor

TC-AC 420/50/10 V

Item no.: 4010495 EAN: 4006825638264
  • Oil lubrication contributes to long life
  • Oil level check through inspection window

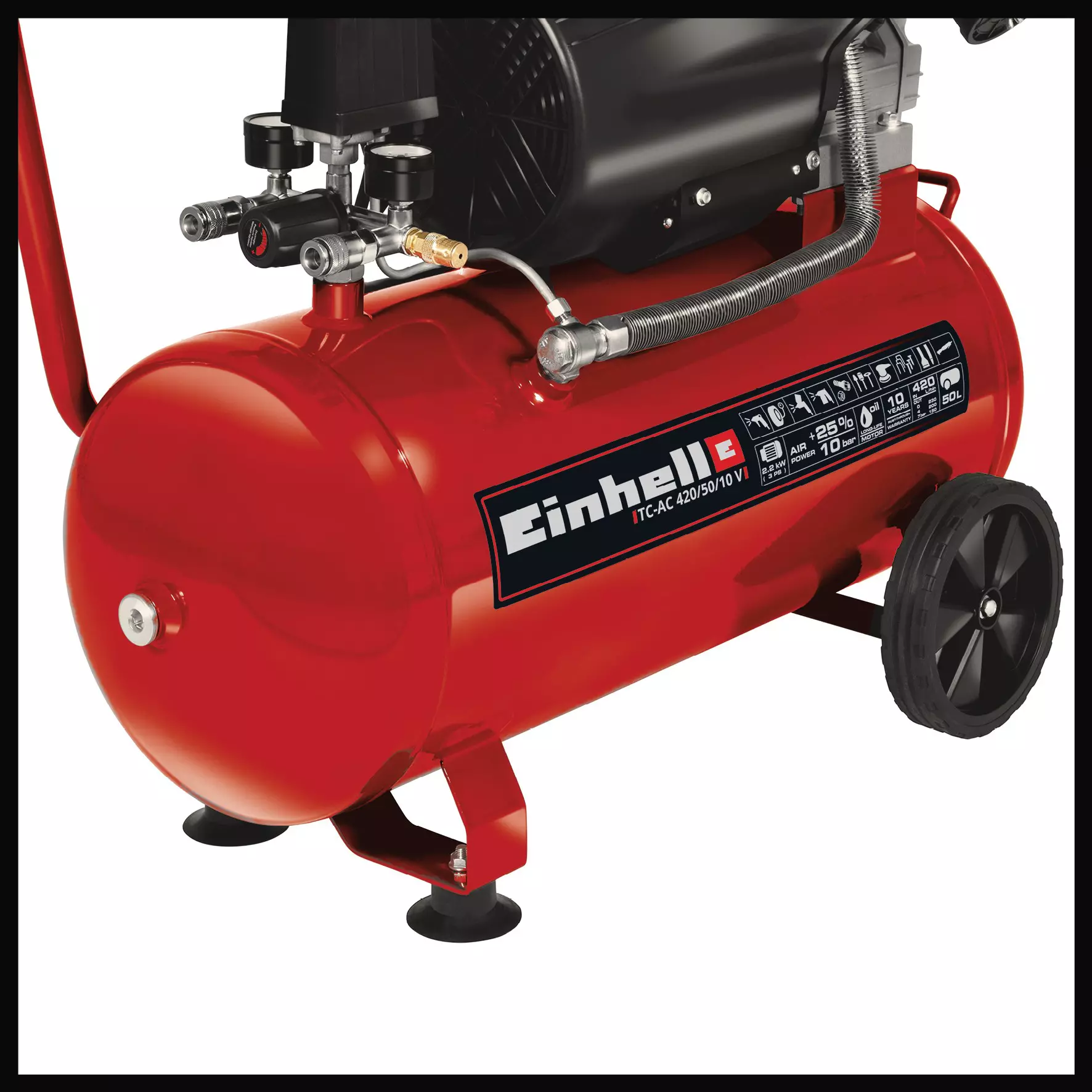

  • The 50l tank provides sufficient air reserves

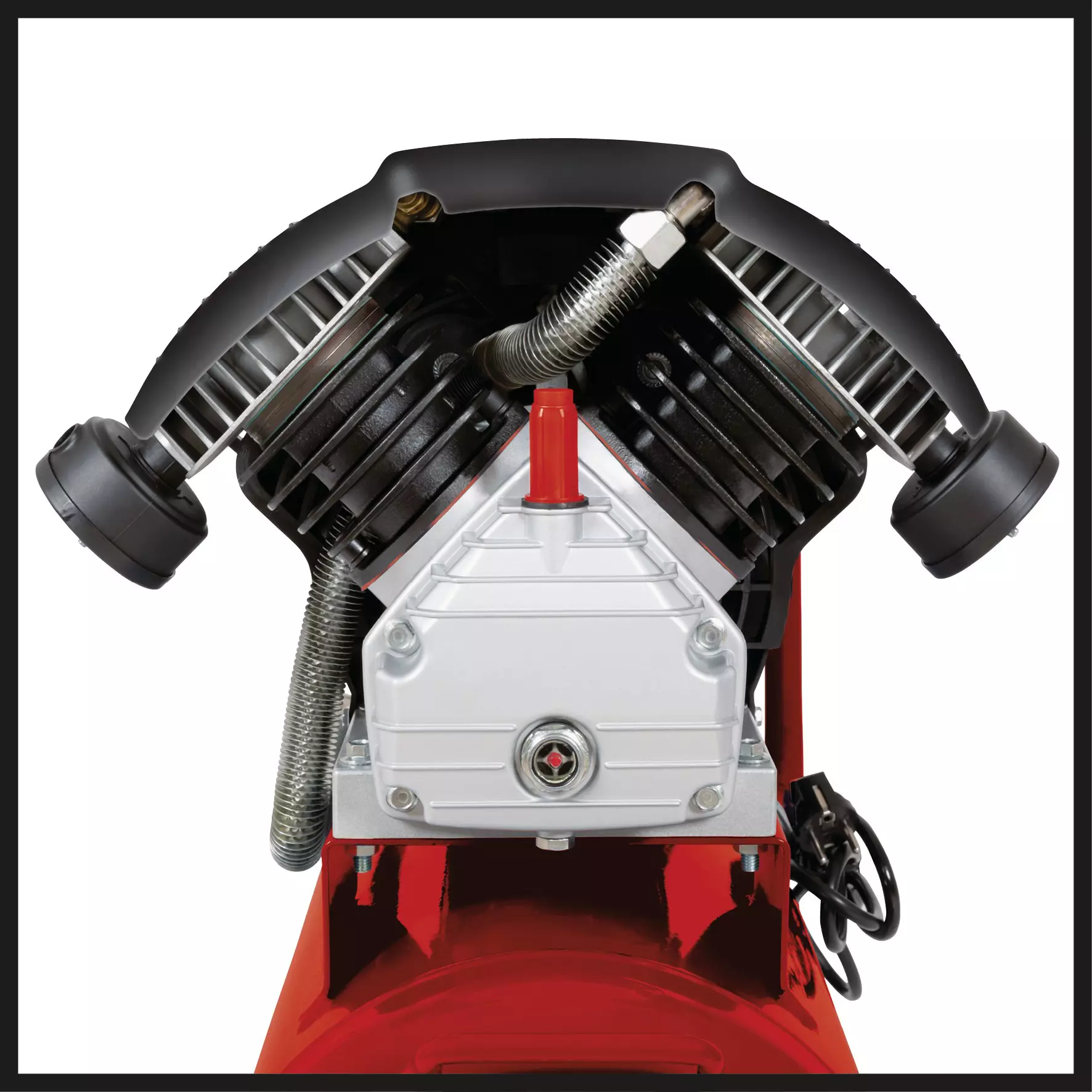

  • High air delivery rate through double compressor unit
  • Applications up to 10 bar can be set using the pressure reducer

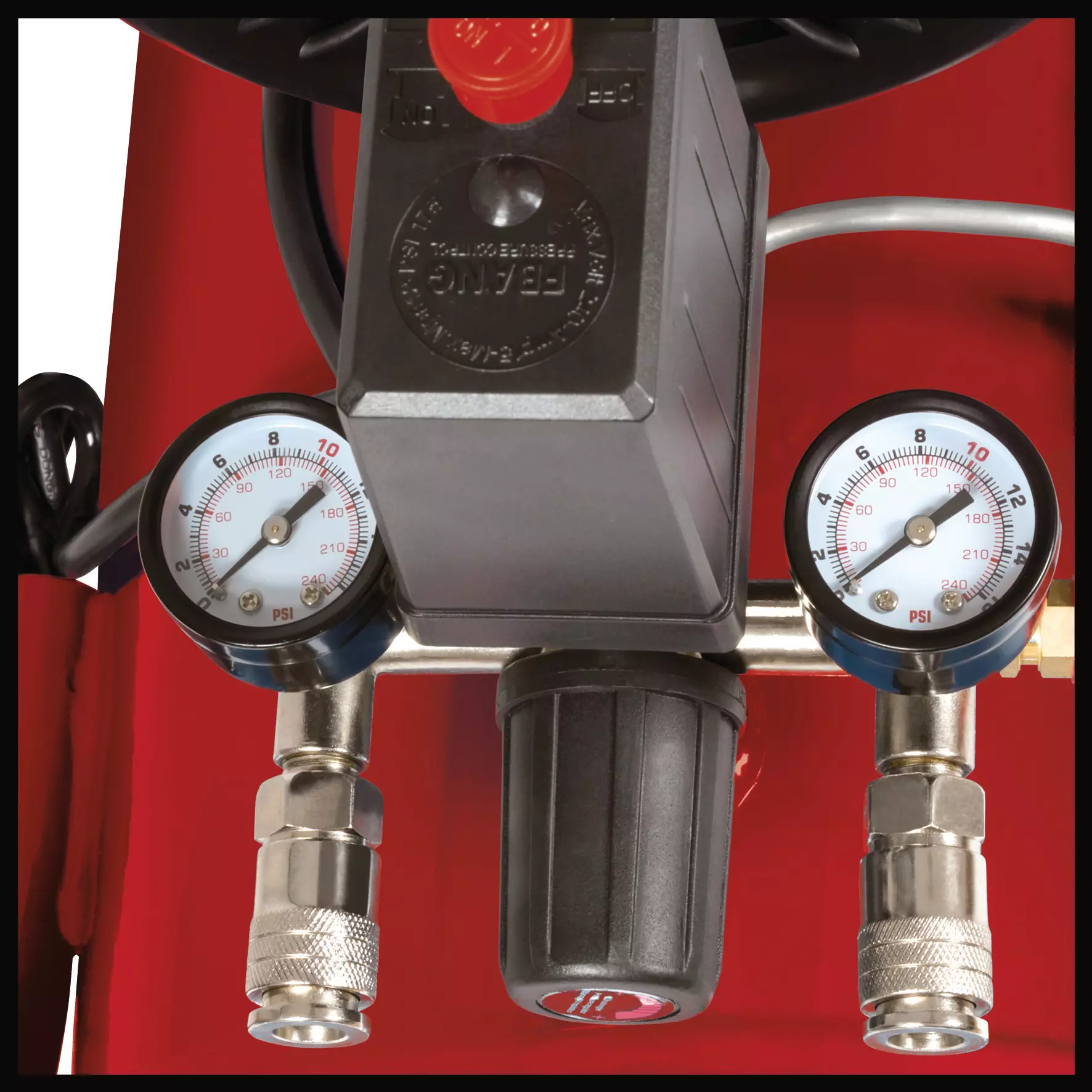

  • Pressure gauge & quick-release coupling for regulated pressure
  • Pressure gauge & quick-release coupling for unregulated pressure

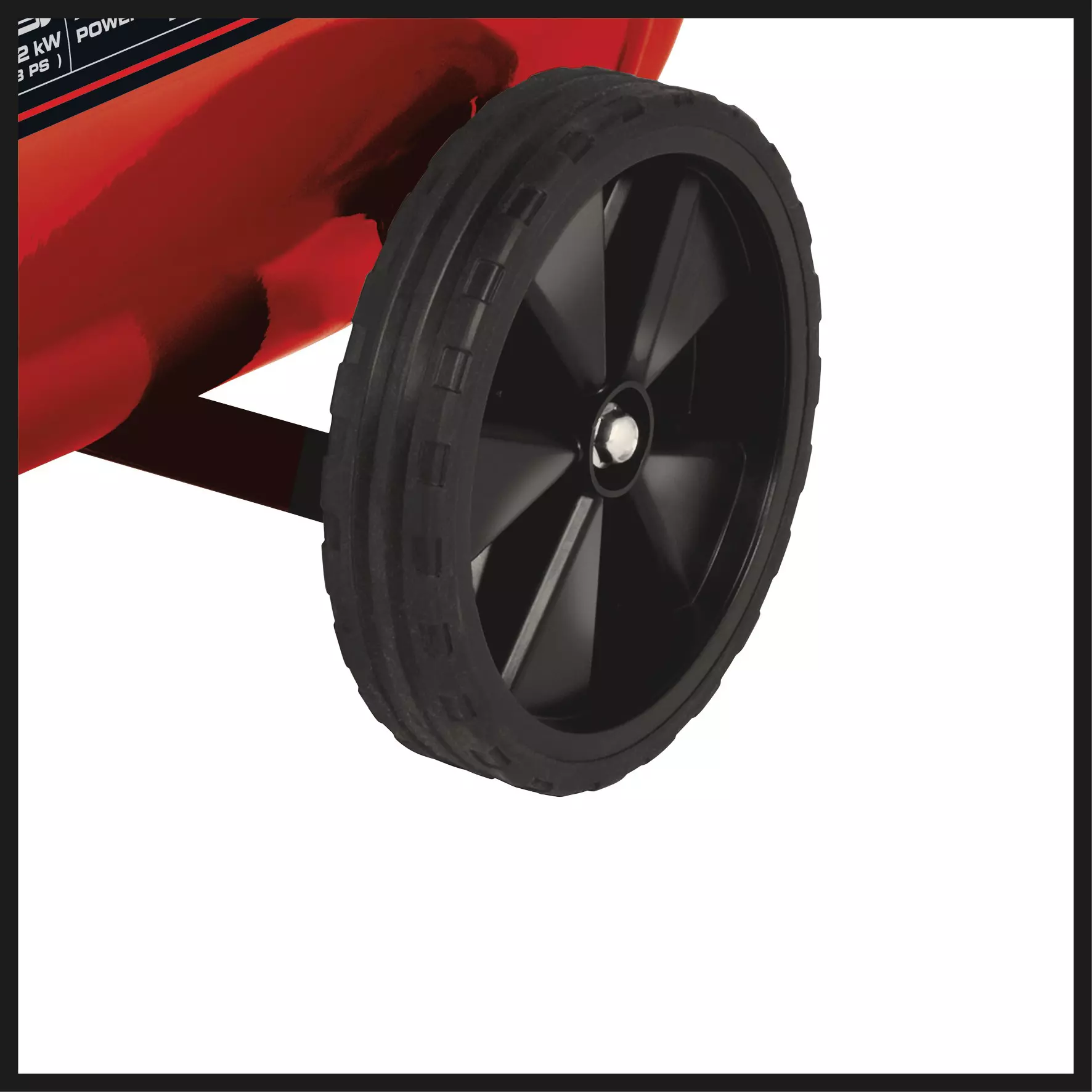

  • Large wheels and a transport handle for an easy transport

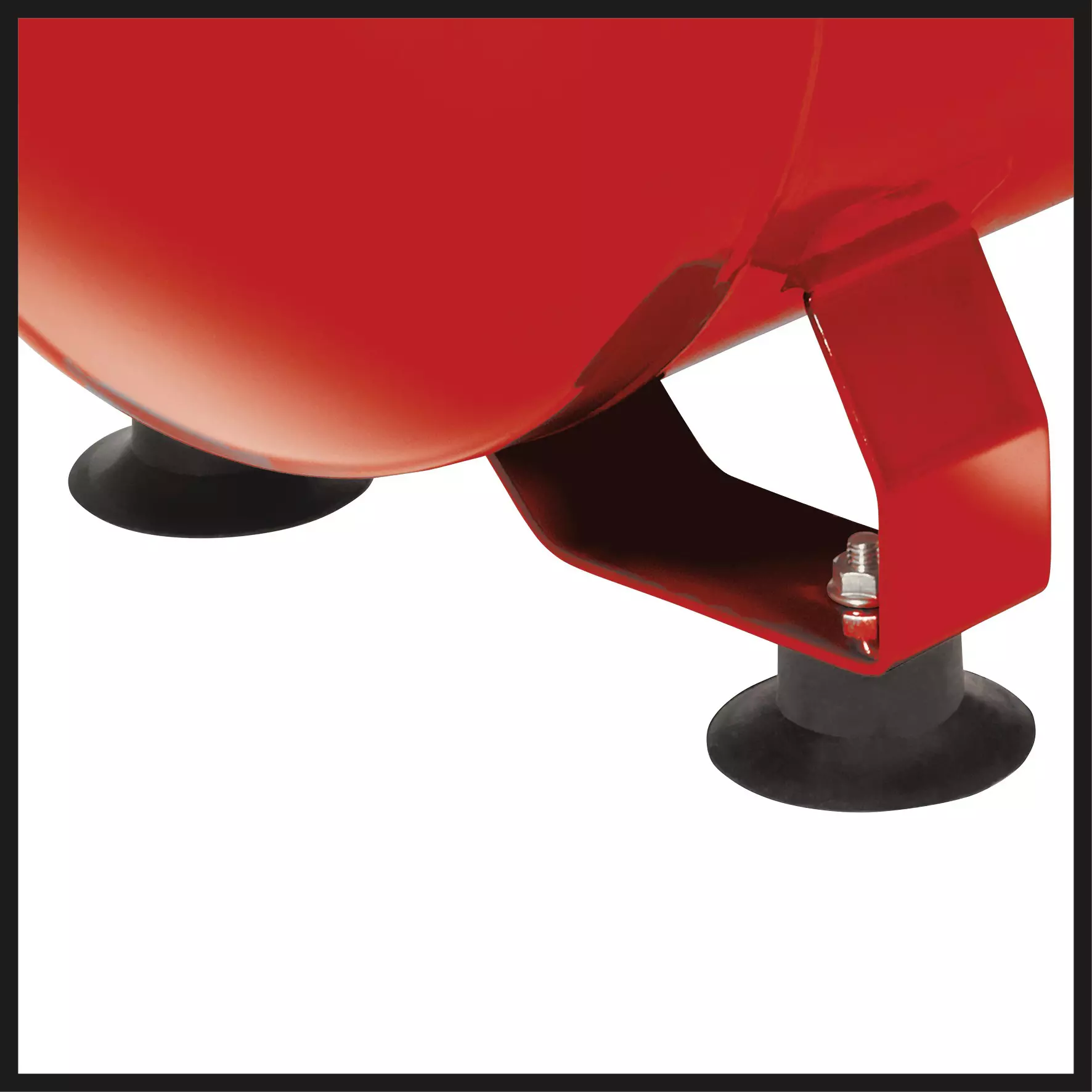

  • Vibration-damped feet for standing securely
  • 10 years warranty against rusting through of the tank
  • Non-return valve, safety valve

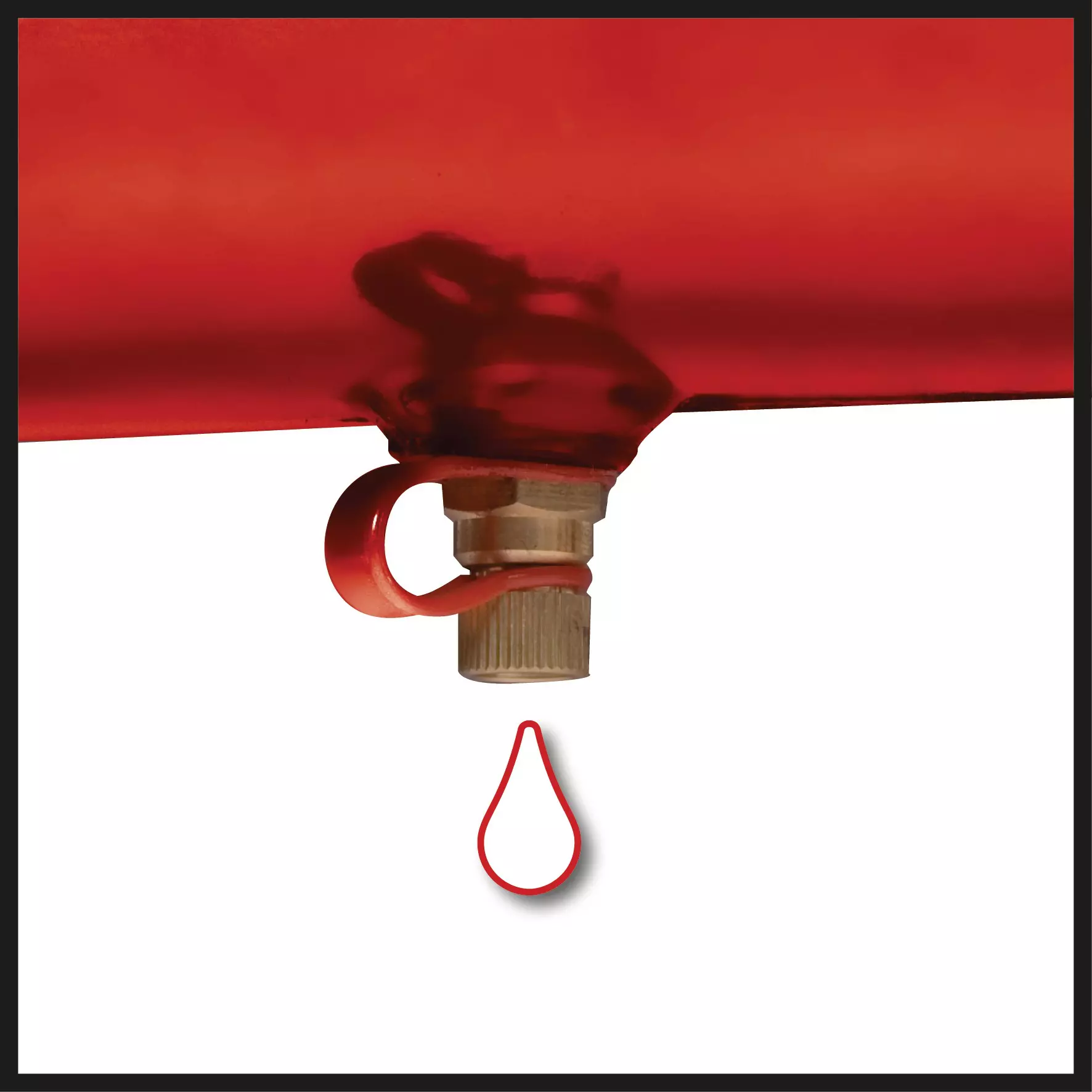

  • The drain cock enables user-friendly maintenance
See more information
Show less information
einhell-classic-air-compressor-4010495-productimage-001
Article description

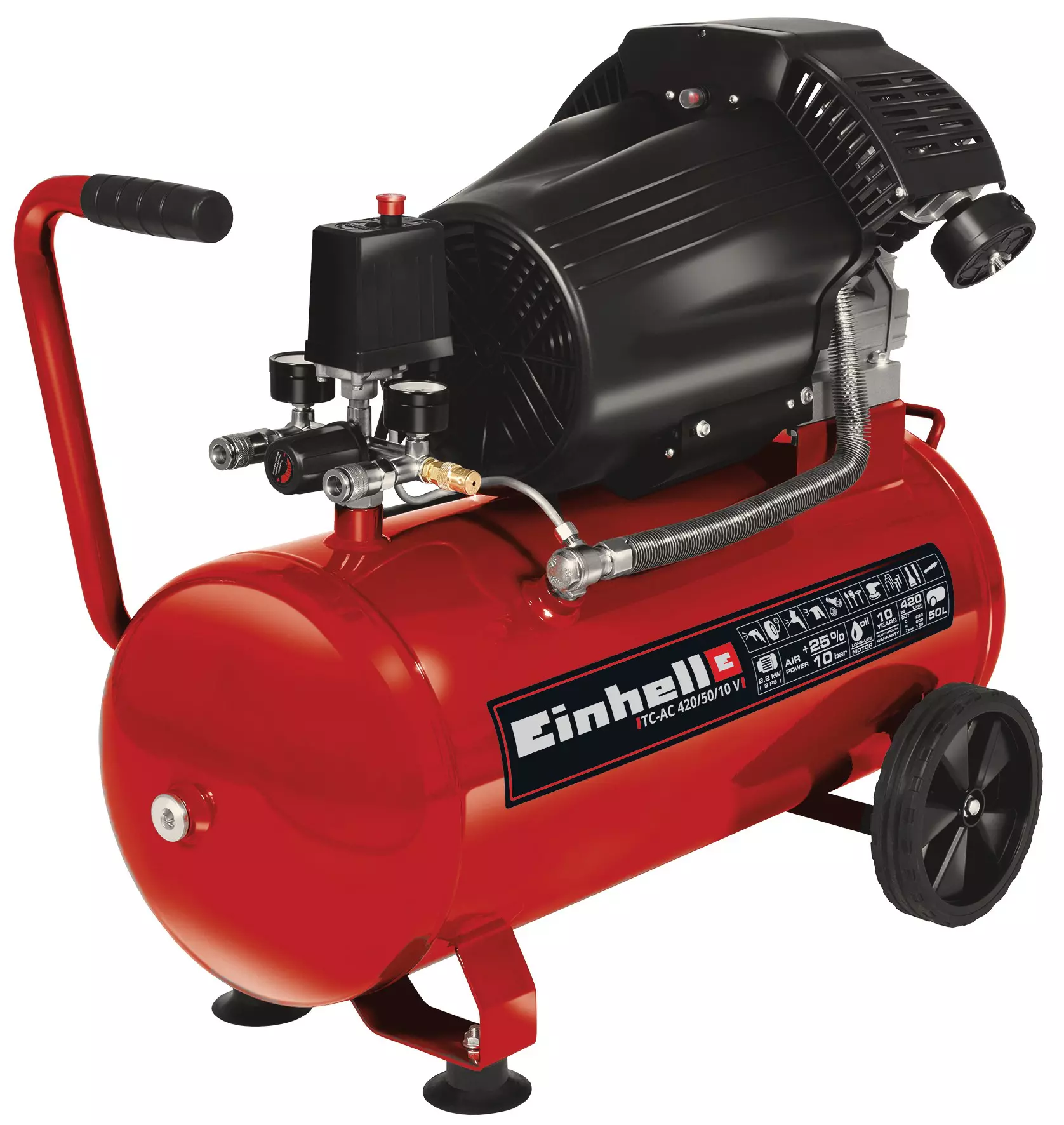

The Einhell TC-AC 420/50/10 V compressor is indispensable for work in the workshed and garage: With a rating of 2,200 W, it generates maximum operating pressure of 10 bar. For a high air delivery rate the compressor has a double compressor unit, and a 50 liter tank provides plenty of air reserves. There is a pressure reducer for regulating the numerous compressed air applications up to a maximum operating pressure of 10 bar. There is one integrated pressure gauge and one quick-release coupling for controlled working pressure and for uncontrolled tank pressure. The integrated oil lubrication ensures that the compressor has a long life, and the oil level can be checked at any time through an inspection window. For safety during operation there is a non-return valve and a safety valve. Einhell is convinced of the high quality of the material and provides a 10-year rust-through warranty for the tank. The drain cock on the compressor enables user-friendly maintenance. The compressor is sturdy in operation thanks to vibration-absorbing legs which ensure that is stands firmly and safely. For easy transportation there are large wheels and a transport handle.

See more information
Show less information

Technical data

Max. operating pressure10 bar
Motor speed2850 min^-1
Number of cylinders2 pcs
Output power 0 bar245 l/min
Output power 4 bar200 l/min
Output power 7 bar150 l/min
Product weight41.75 Kg
Pump speed2850 min^-1
Sound pressure level (volume)75.1 dB (A)
Suction power420 l/min
Tank volume50 l
