Water Works

GC-WW 1046 N

(6)
Item no.: 4173480 EAN: 4006825616286
  • Very high suction power and pressure and delivery capacity
  • Permanent water supply (house/garden) with constant pressure
  • High-quality INOX high-grade steel pump housing
  • Sturdy metal thread at both the intake and output side
  • Maintenance-free motor with thermal overload cut-out
  • High-quality mechanical seal for a long life
  • Steel pressure tank with tank volume of 20 liters
  • Complete with pressure switch for automatic control
  • Integrated pressure gauge
  • Separate water filler screw for easy starting
  • Water drain screw for easy draining of residual water
  • Sturdy feet including holes for ground/floor anchoring
See more information
Show less information
einhell-classic-water-works-4173480-productimage-001
Article description

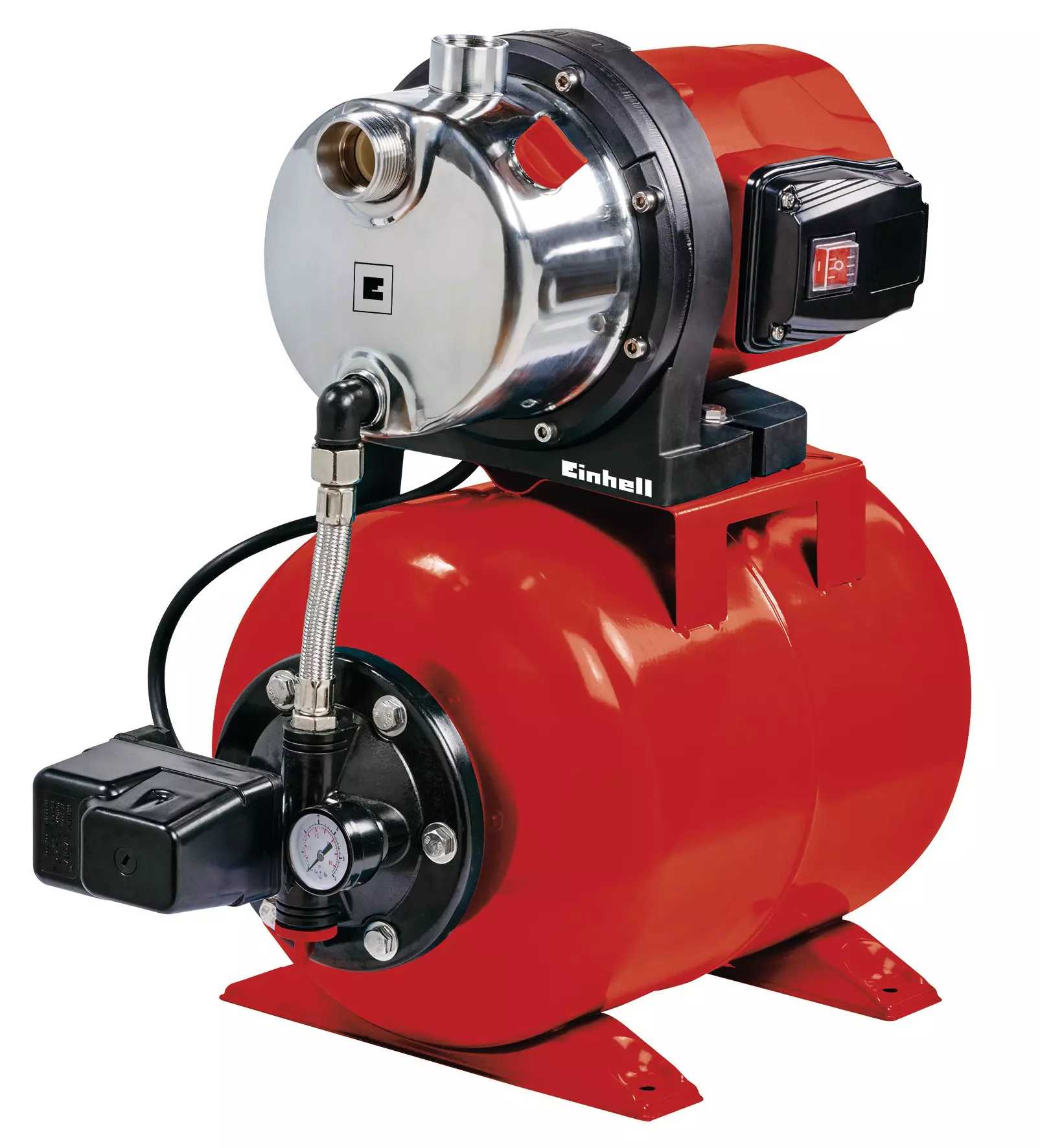

The GC-WW 1046 N domestic waterworks set from Einhell is a user-friendly alternative to using expensive mains water and really helps to save cash. This domestic water system enables the use of water from reservoirs, shafts, wells or cisterns for home and garden use. The Einhell domestic waterworks set comes with a waterworks jet pump with an On/Off switch and a high-grade INOX stainless steel pump housing. Designed for high efficiency, the pump works with a very high suction force and matching pressure and delivery values. With its 1,050 W motor, the domestic waterworks achieves a delivery rate of up to 4,600 liters of water per hour. This electric motor requires no maintenance and is fitted with a thermal overload cut-out. The steel pressure vessel has a capacity of 20 liters and comes with an integrated gauge that is plainly visible for reading off the pressure. Service water supplied by the domestic waterworks set for use in the home or garden is kept at constant pressure and always available. Pressure differences are compensated automatically by the pressure control switch. A high-quality ceramic-and-rubber mechanical seal stands for a long service life. A separate water filler screw makes starting up easy, and with the water drain screw you will have no problems in draining off any residual water. The sturdy pump foot with holes is easy to fasten.

See more information
Show less information

Technical data

Boiler volume
20 l
Max. delivery height
48 m
Max. delivery pressure
4.8 bar
Max. delivery rate
4600 l/h
Max. suction height
8 m
Max. water temperature
35 °C
Power
1050 W
Power cable length
1.5 m
Product weight
14.4 kg

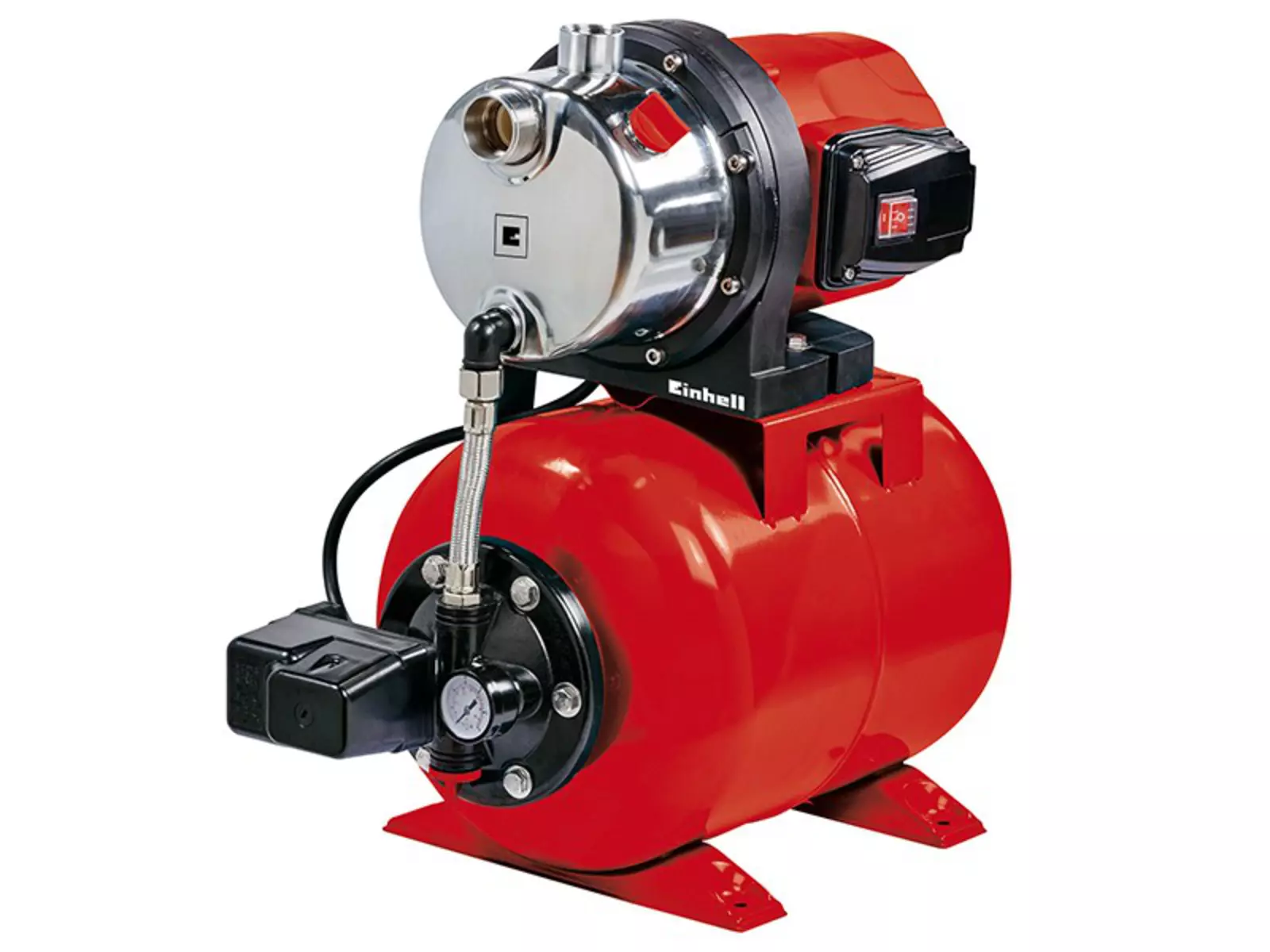

Service water

Domestic water system for service water use

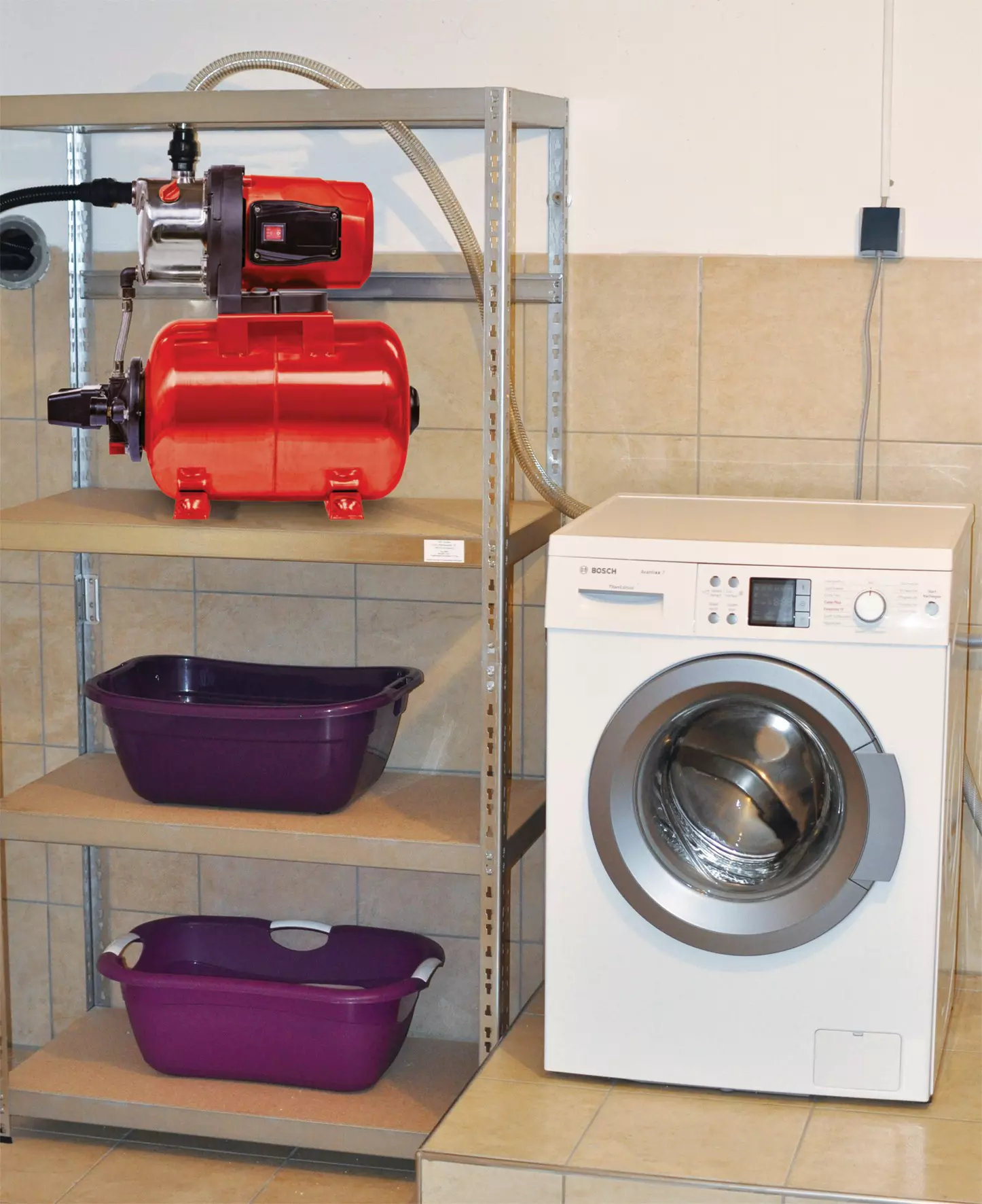

The Einhell domestic water system GC-WW 1046 N enables conveying service water to supply irrigation systems such as lawn sprinklers or washing equipment. This means that the amount of treated water withdrawn from the tap for these applications can be reduced. The domestic water system is fitted with mechanical seals and thermal overload protection, which protects the motor from overheating.

Service water

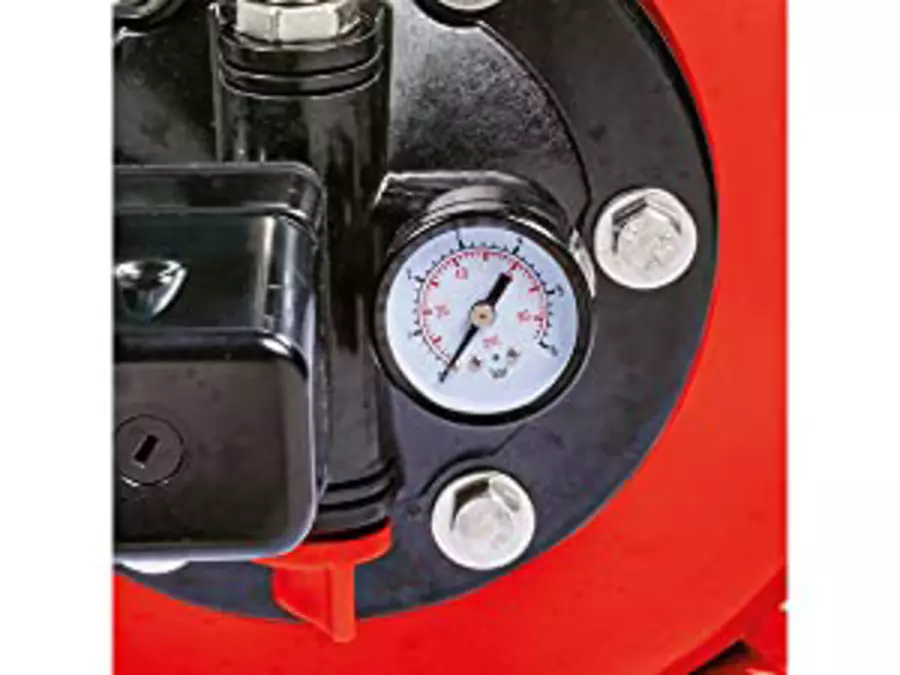

High-quality pump technology

High-quality pump technology

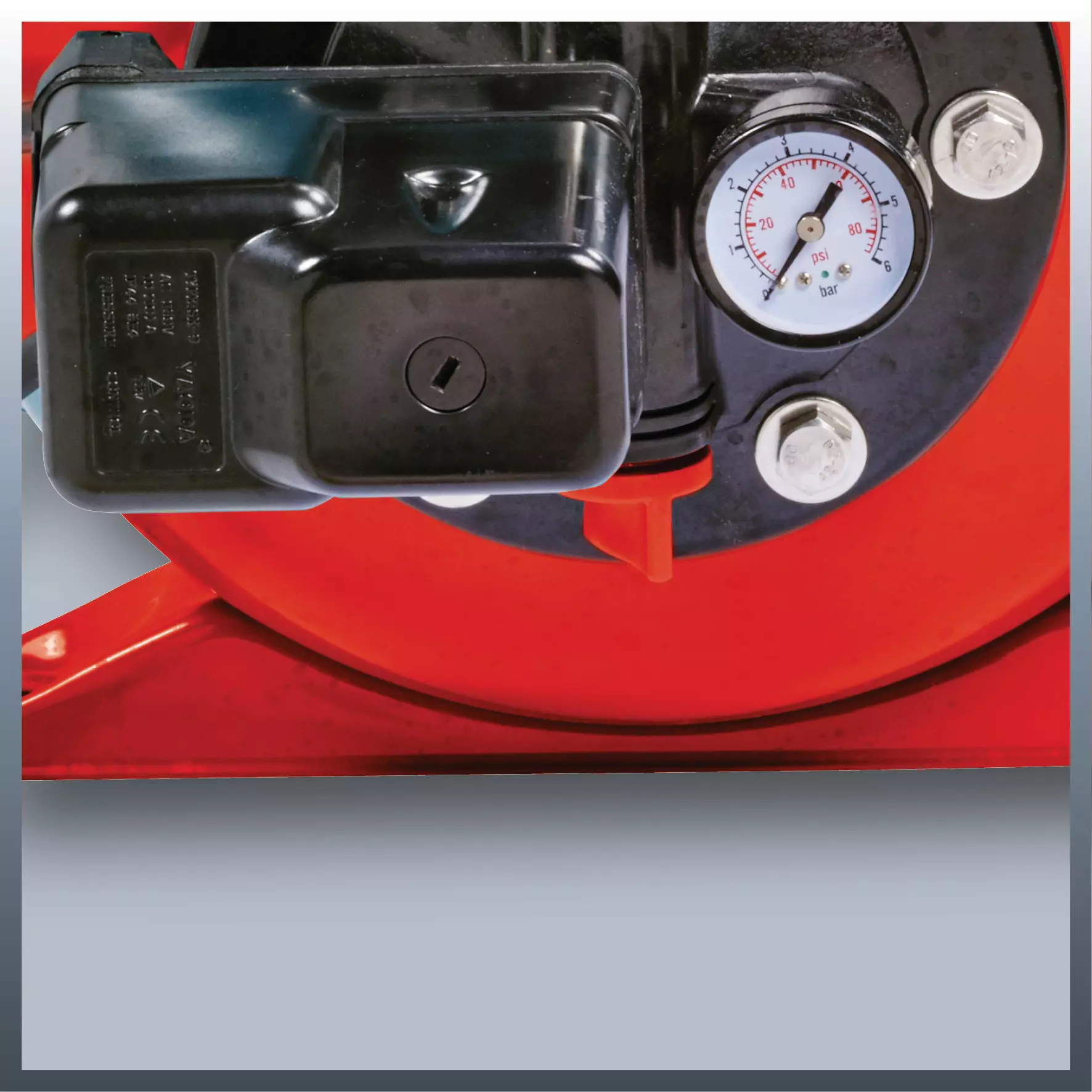

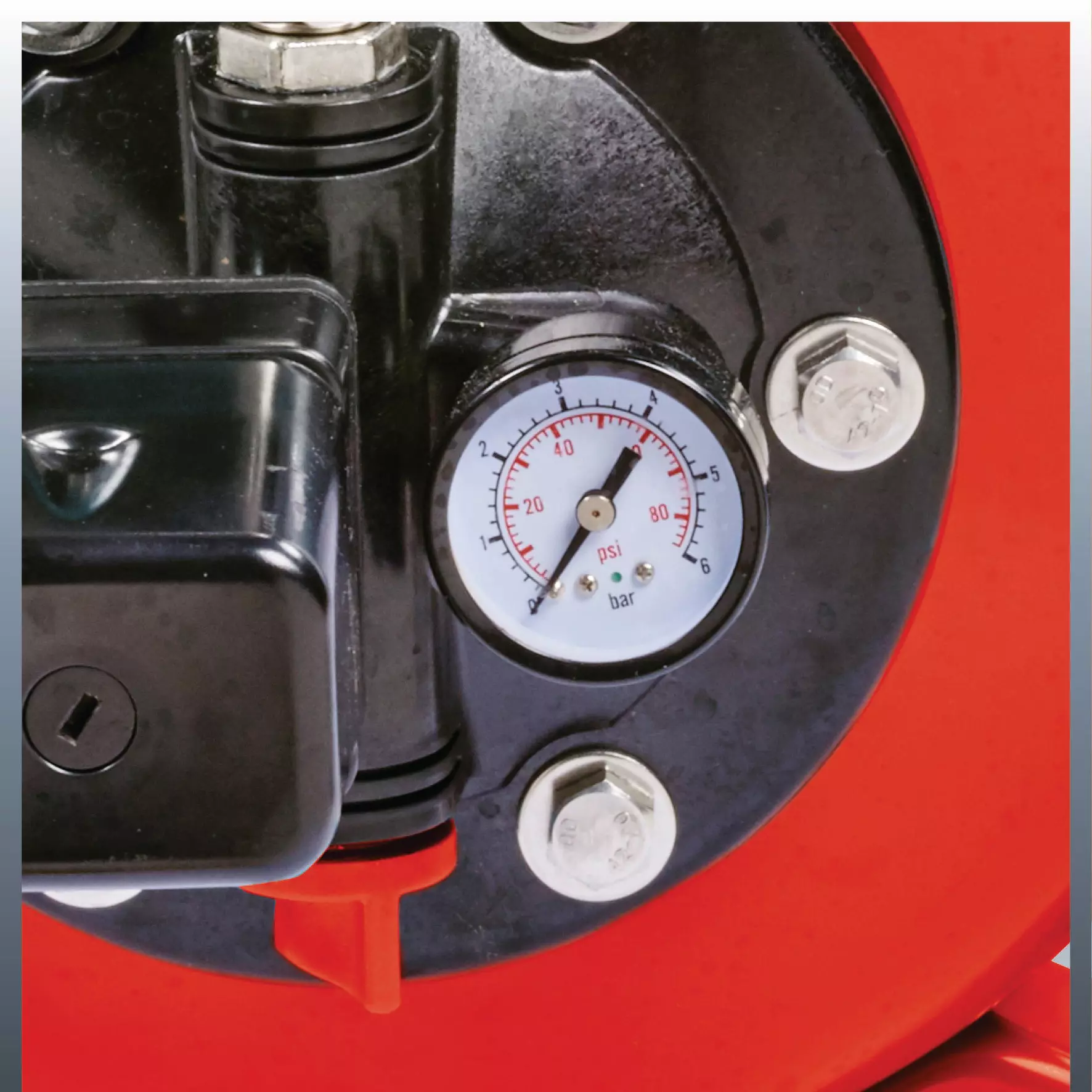

The pressure gauge shows the water pressure at all times. If the pressure drops, a pressure switch will switch the pump on automatically.

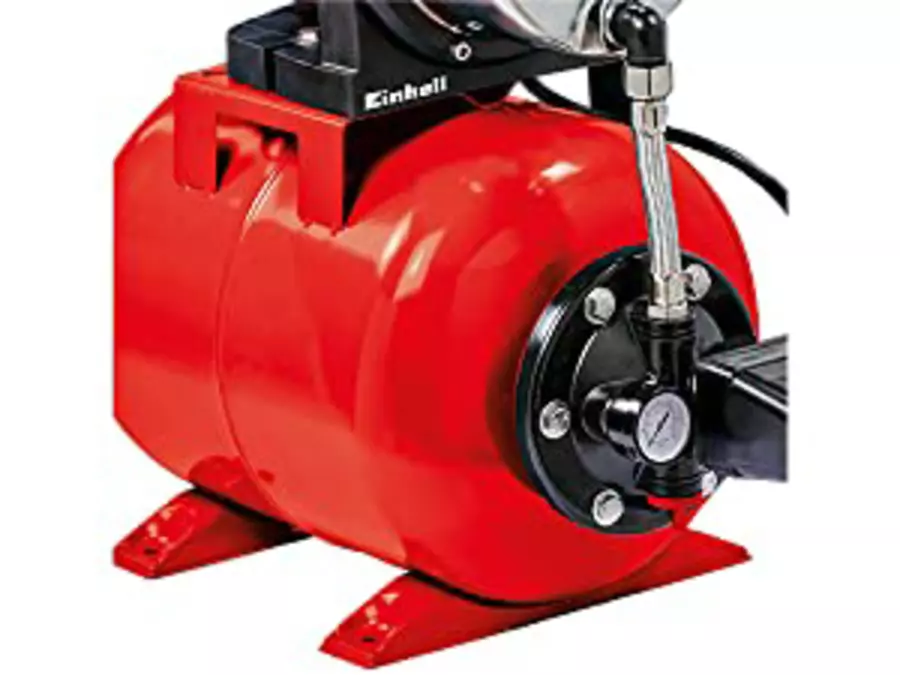

Sturdy pressure tank

Sturdy pressure tank

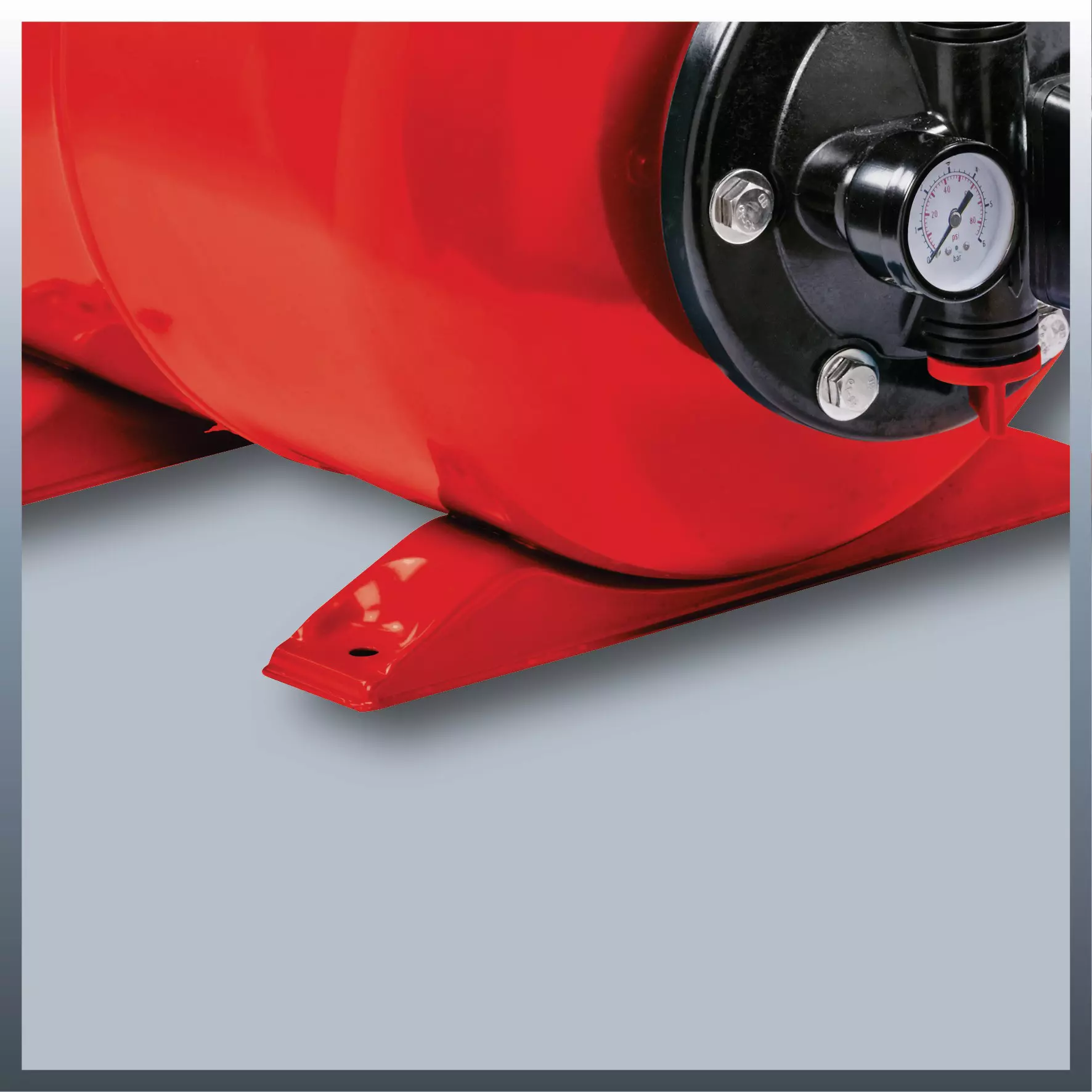

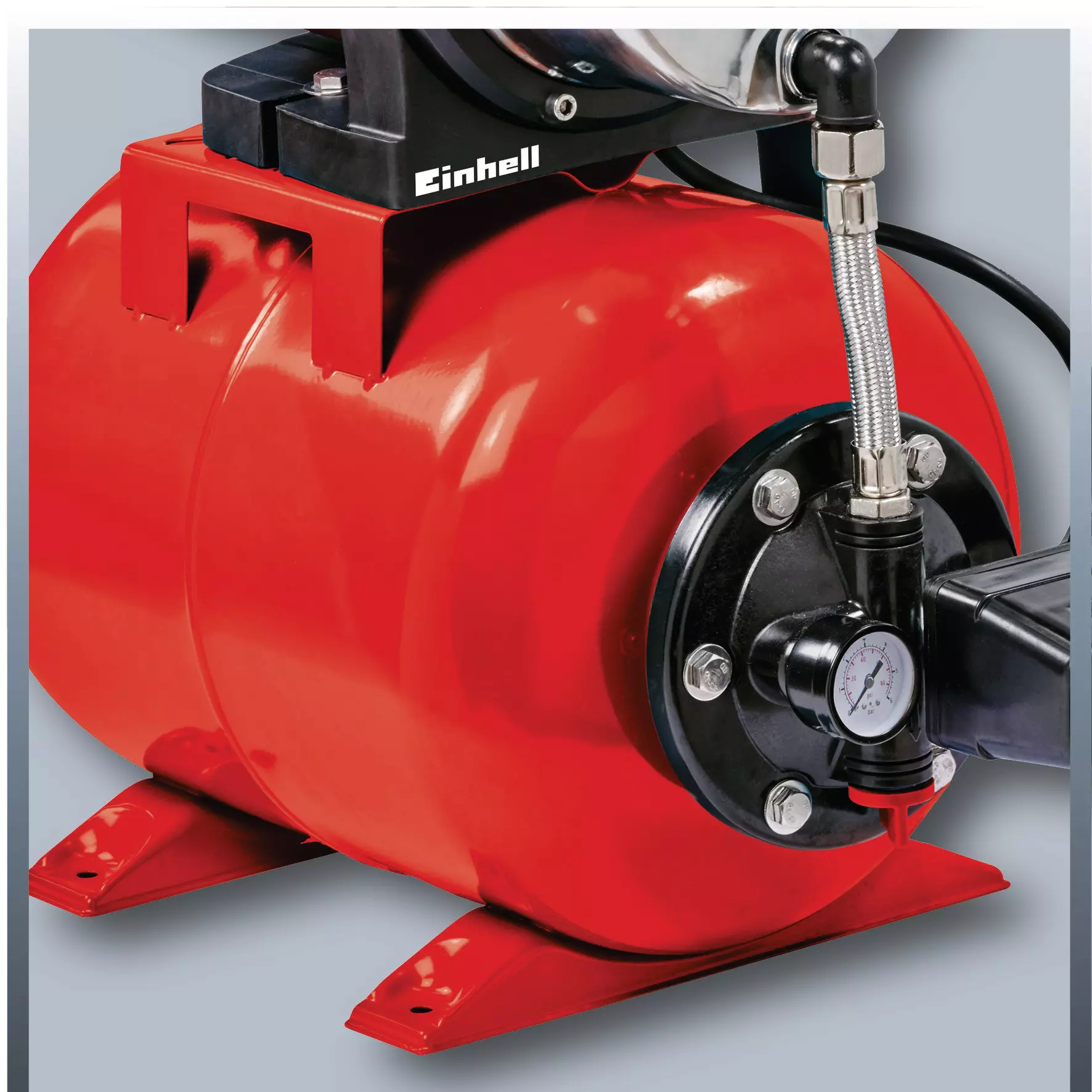

The steel pressure tank has a capacity of 20 litres and can also be secured onsite using the holes in the pump base.

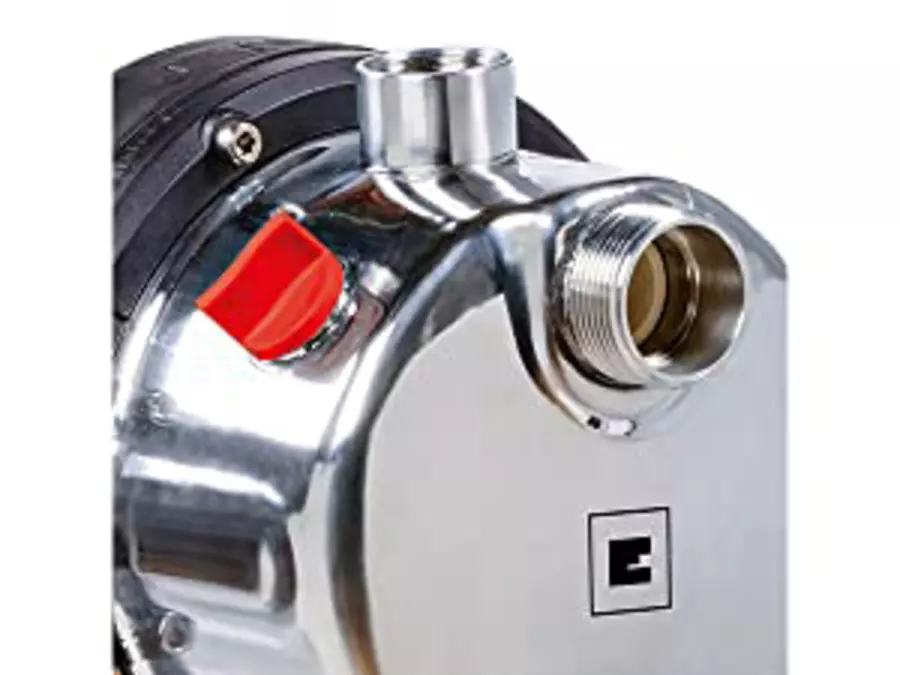

Robust metal threads

Robust metal threads

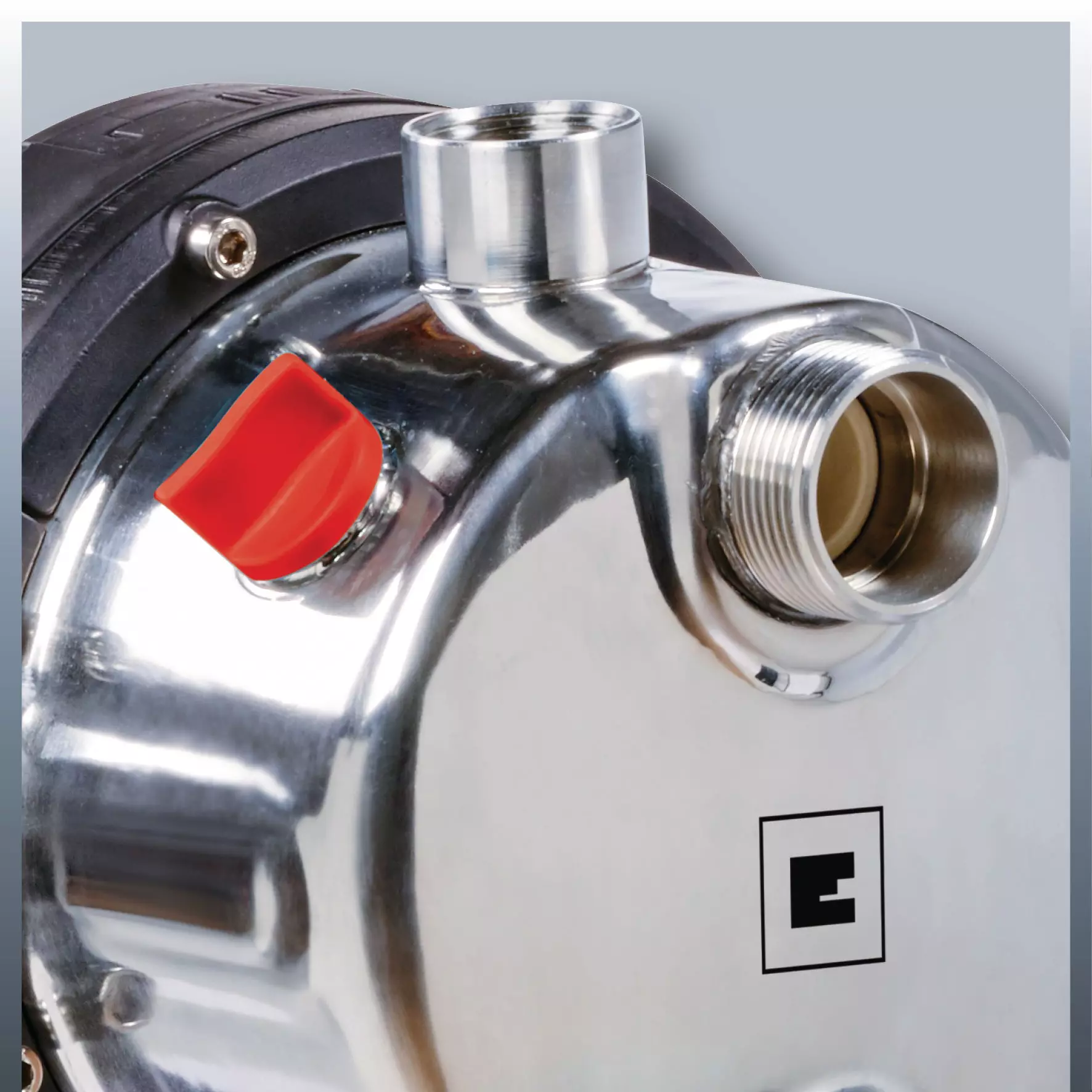

The domestic water system has a 1 ¼” (42 mm) external thread for suction and a 1” (33.3 mm) internal thread for pressure, both made of sturdy metal.

Frost protection

Frost protection

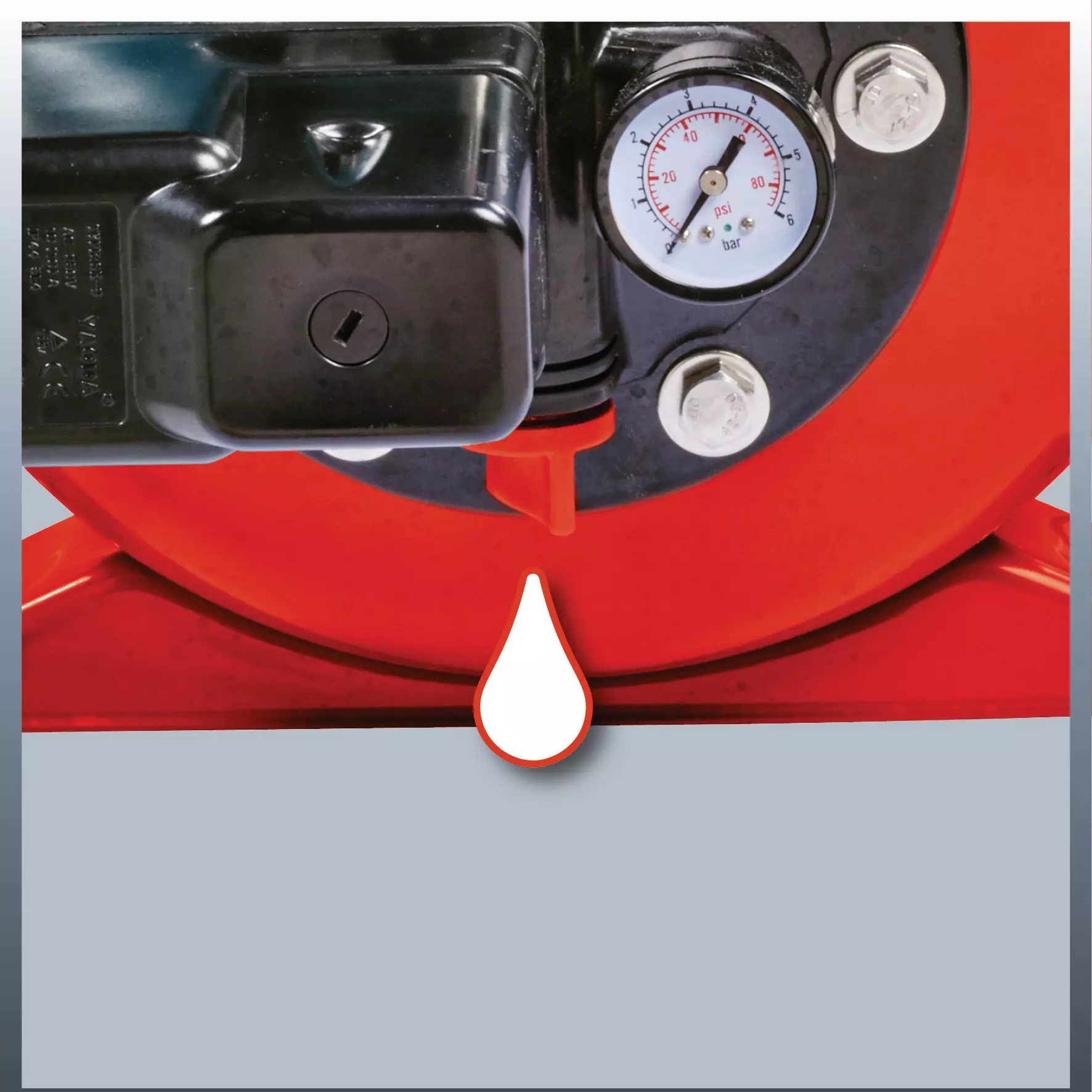

To avoid damage during the cold season, any residual water can be emptied easily via the water drain plug.
