Sliding Mitre Saw
TC-SM 216
Item no.:4300380EAN: 4006825635706
einhell-classic-sliding-mitre-saw-4300380-productimage-001
einhell-classic-sliding-mitre-saw-4300380-example_usage-001
einhell-classic-sliding-mitre-saw-4300380-detail_image-001
einhell-classic-sliding-mitre-saw-4300380-detail_image-002
einhell-classic-sliding-mitre-saw-4300380-detail_image-003
einhell-classic-sliding-mitre-saw-4300380-detail_image-004
einhell-classic-sliding-mitre-saw-4300380-detail_image-005
einhell-classic-sliding-mitre-saw-4300380-detail_image-006
einhell-classic-sliding-mitre-saw-4300380-detail_image-007
einhell-classic-sliding-mitre-saw-4300380-productimage-001
einhell-classic-sliding-mitre-saw-4300380-example_usage-001
einhell-classic-sliding-mitre-saw-4300380-detail_image-001
einhell-classic-sliding-mitre-saw-4300380-detail_image-002
einhell-classic-sliding-mitre-saw-4300380-detail_image-003
einhell-classic-sliding-mitre-saw-4300380-detail_image-004
einhell-classic-sliding-mitre-saw-4300380-detail_image-005
einhell-classic-sliding-mitre-saw-4300380-detail_image-006
einhell-classic-sliding-mitre-saw-4300380-detail_image-007
Sliding Mitre Saw

TC-SM 216

Item no.: 4300380 EAN: 4006825635706

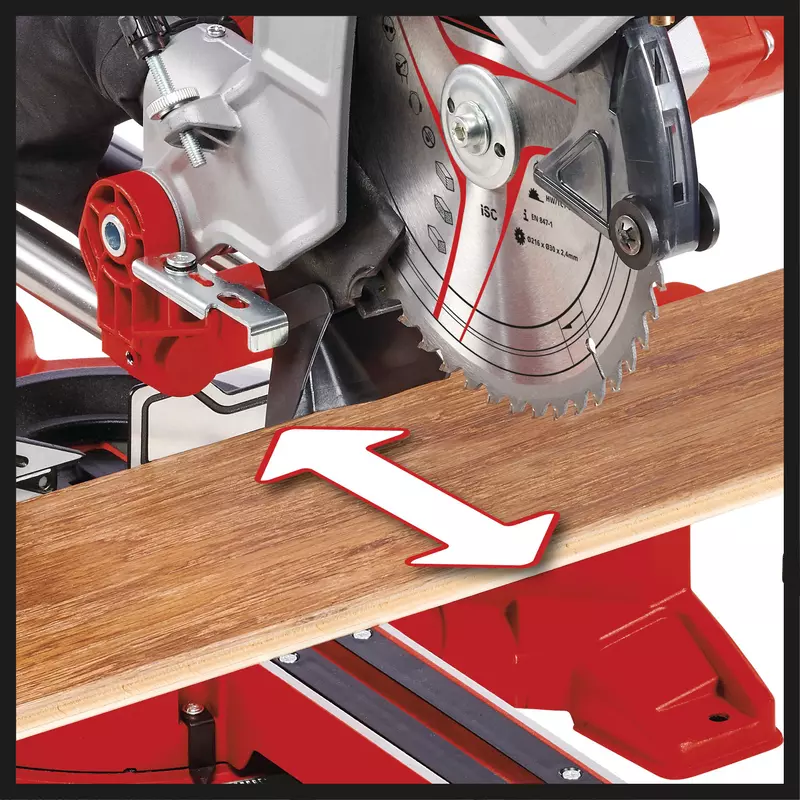

  • Smoothly running drag function for wide workpieces

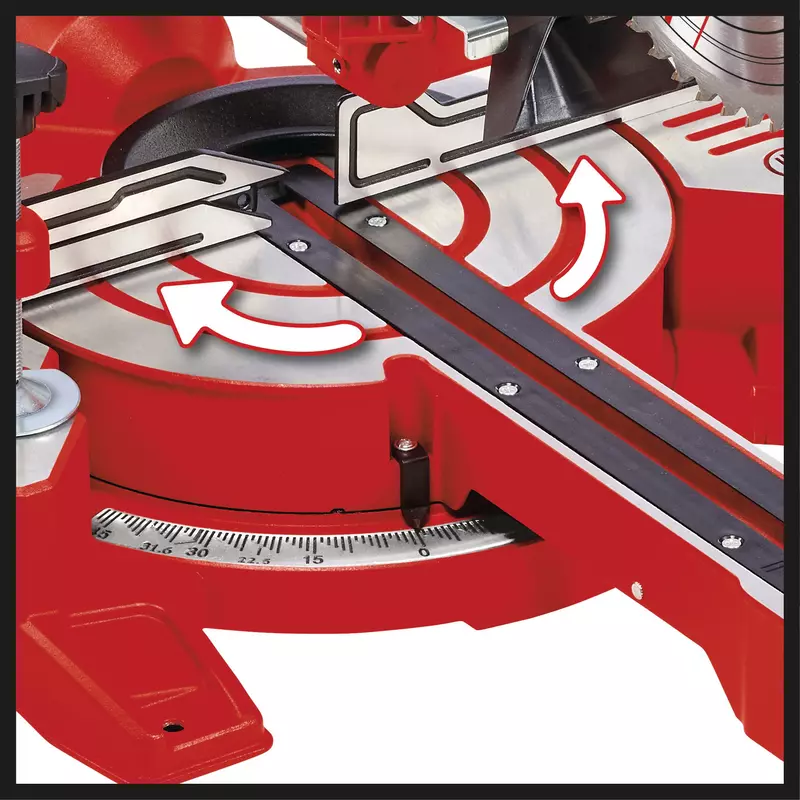

  • Turntable with precise quick angle setting for angular cuts
  • Turntable with accurate locking positions for all common angles

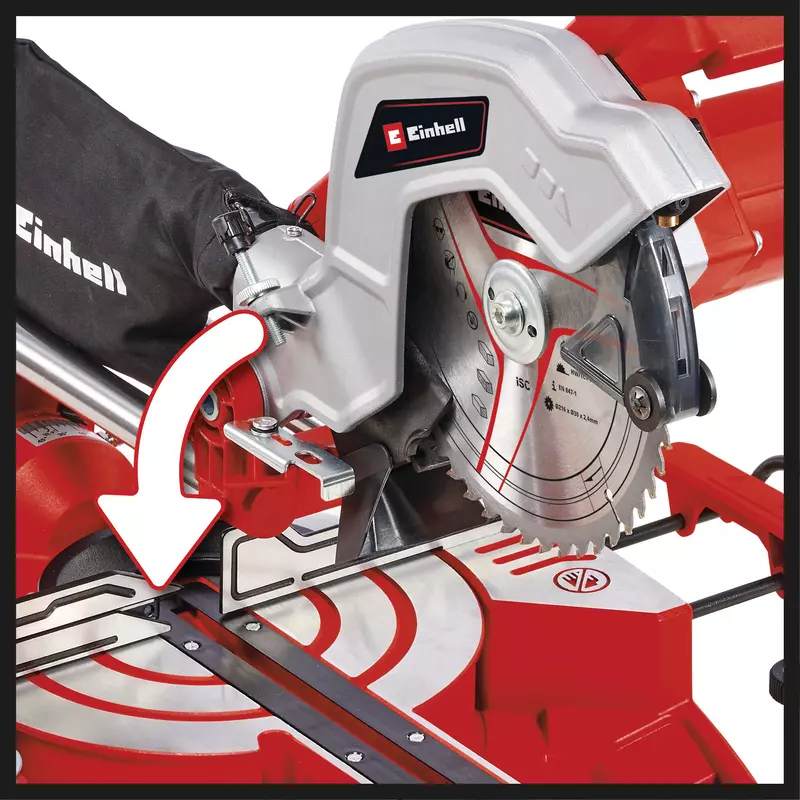

  • Saw head tilts to the left for perfect mitre cuts

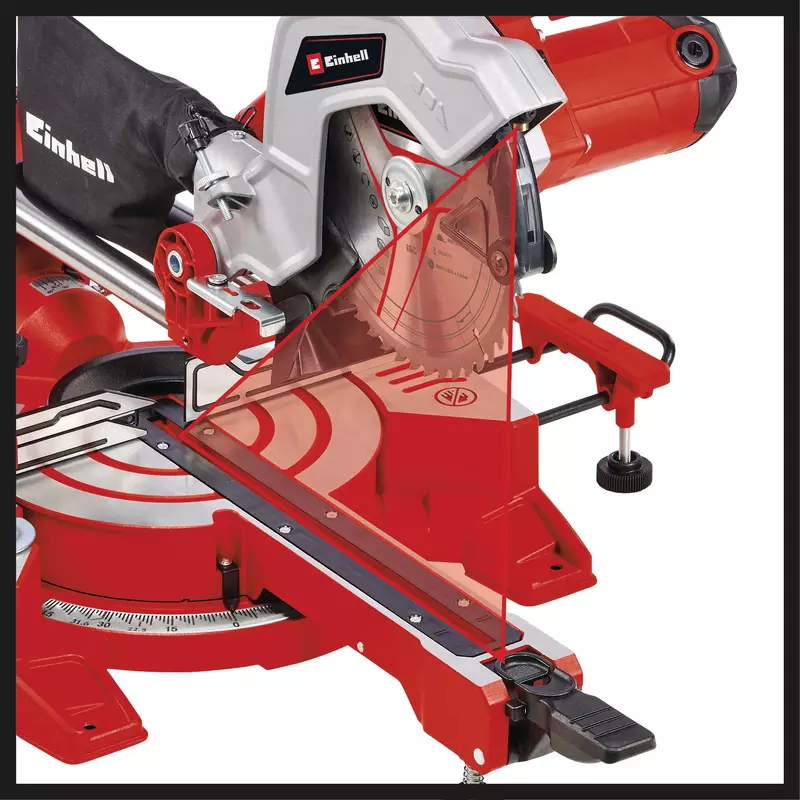

  • The integrated laser is a welcome help for exactly cutting
  • Workpiece supports on both sides for long workpieces
  • High-grade carbide-tipped precision saw blade for the best cuts

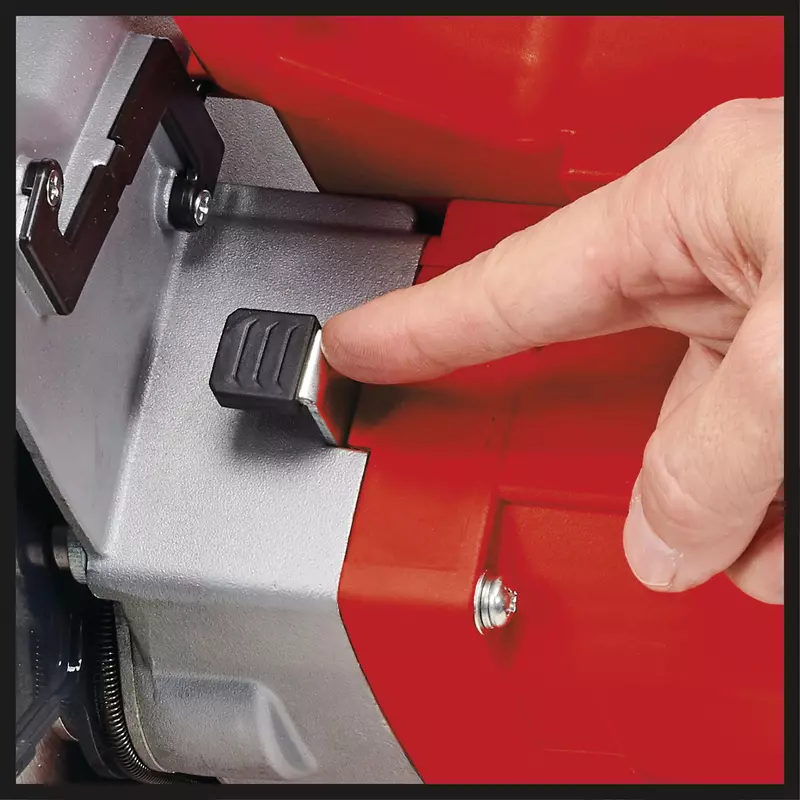

  • Spindle lock for an easy and fast saw blade change

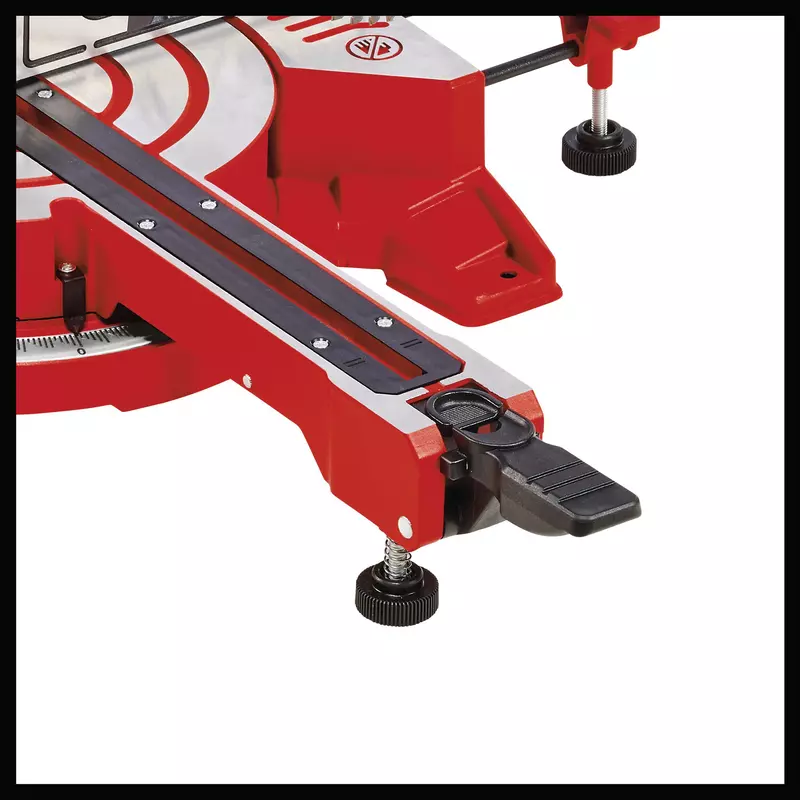

  • Clamping device for holding the workpiece securely in position
  • Well readable scales for the angles and width

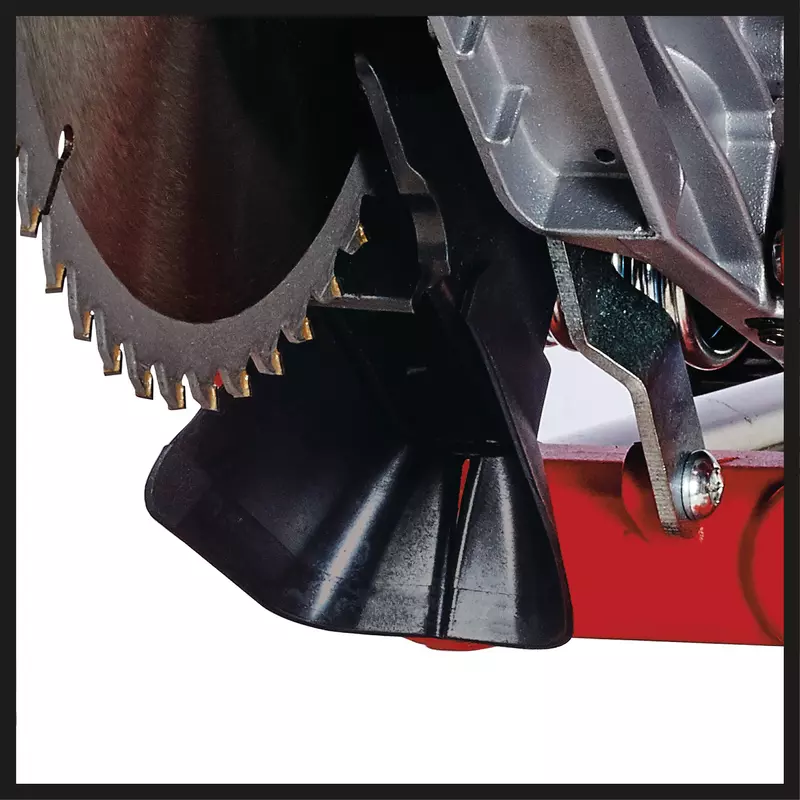

  • Dust funnel behind the saw blade for improved saw dust absorption
See more information
Show less information
einhell-classic-sliding-mitre-saw-4300380-productimage-001
Article description

With the Einhell TC-SM 216 drag, crosscut and miter saw the ambitious DIY enthusiast is ideally equipped for cutting and crosscutting jobs in the home, workshed or garage. With a 1,600 W power rating the saw blade (Ø 216 external x ø 30 internal) has plenty of power to cut through material. This sturdy saw has a smooth draw function for wide workpieces. The turntable has a precise angle adjustment facility to make it easier to achieve good angular cuts. For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths. Also, the saw head can be tilted to the left for miter cuts. The cutting width is up to 305 millimeters with a 90° setting and up to 210 millimeters with an angle of 45°. The integrated cutting line laser is an enormous help when working. Supports for longer workpieces are provided on the left and right, and there is a practical clamping device for securing the workpieces. The high-grade carbide saw blade delivers perfect cuts. To make it easier to change the saw blade there is a spindle lock. For more effective removal of the sawdust there is a dust funnel behind the saw blade. The extractor connection which is provided has a diameter of 36 millimeters, or the supplied dust bag can be used as an alternative.

See more information
Show less information

Technical data

% power S625 %
Cutting depth 45° x 45°35 mm
Cutting depth 90° x 90°65 mm
Cutting width 45° x 45°215 mm
Cutting width 90° x 90°305 mm
Idle speed max.5200 min^-1
Max. swivel range (saw head)0 °
Max. swivel range (saw table)47 °
Min. swivel range (saw head)45 °
Min. swivel range (saw table)47 °
Number of saw blade 1 teeth48 pcs
Power S61600 W
Product weight12.74 Kg
Saw blade 1 diameter216 mm
Saw blade holder diameter30 mm
