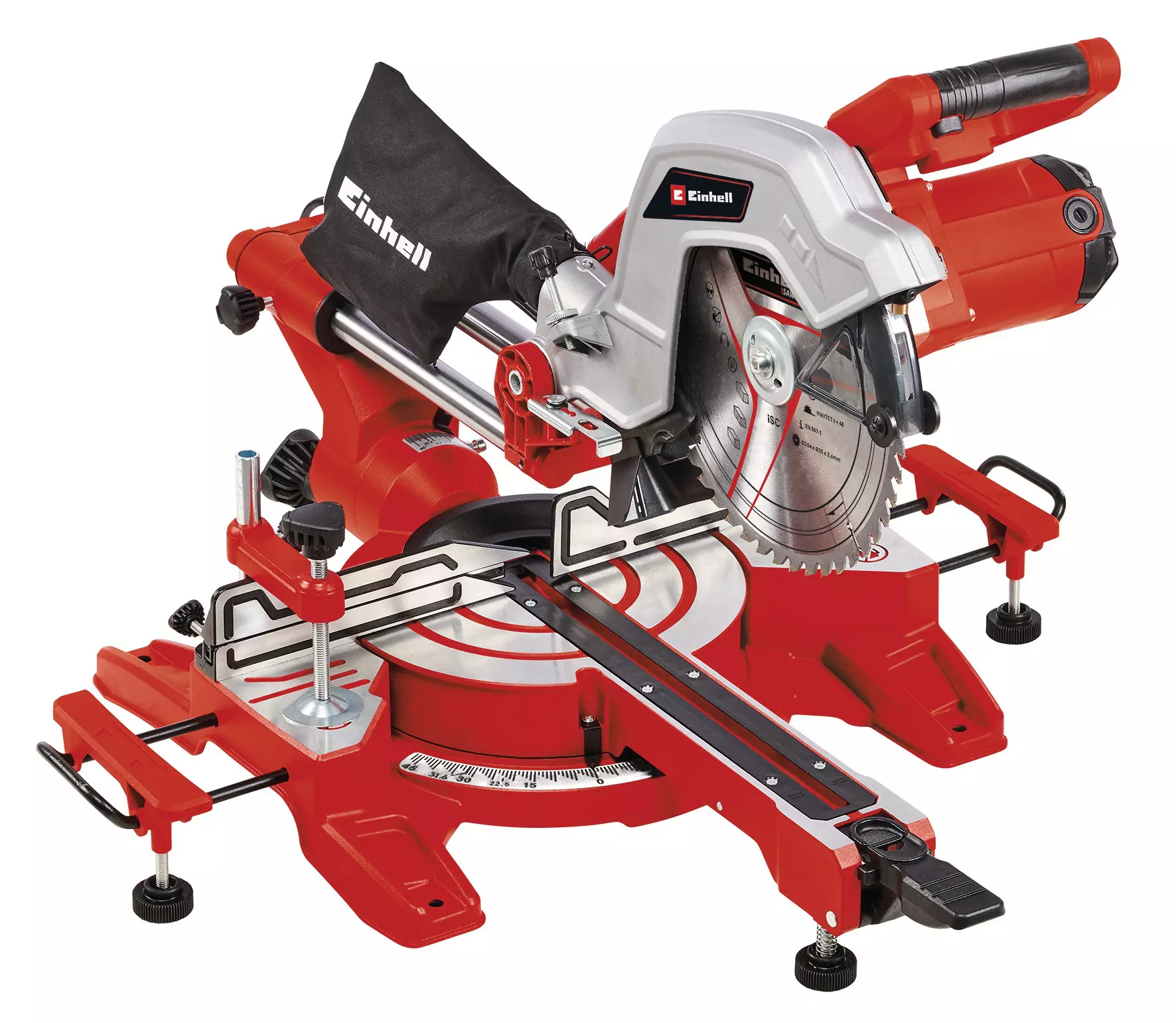

Sliding Mitre Saw

TC-SM 254

Item no.: 4300385 EAN: 4006825635713

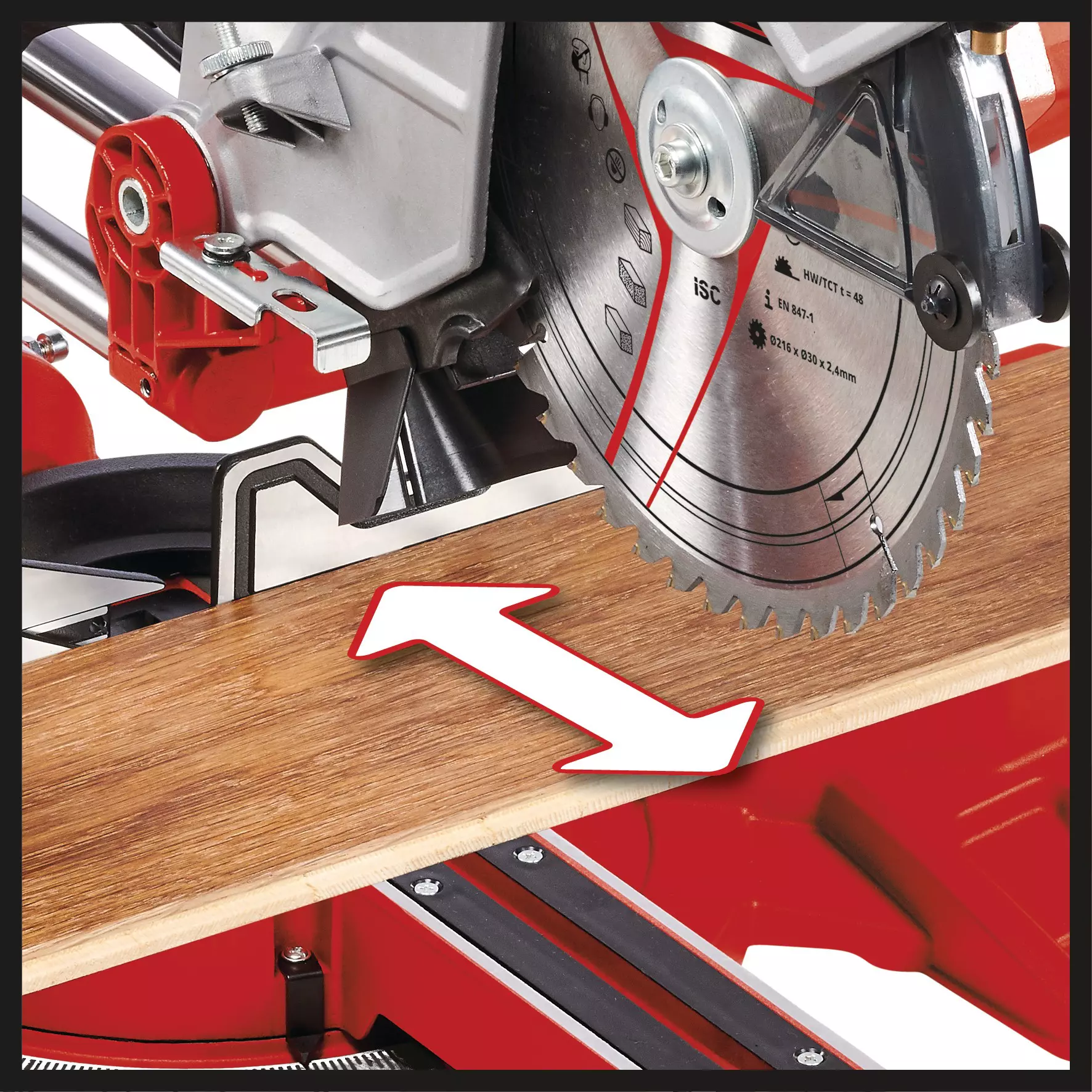

  • Smoothly running drag function for wide workpieces
  • Turntable with precise quick angle settings for angular cuts
  • Turntable with accurate locking positions for all common angles

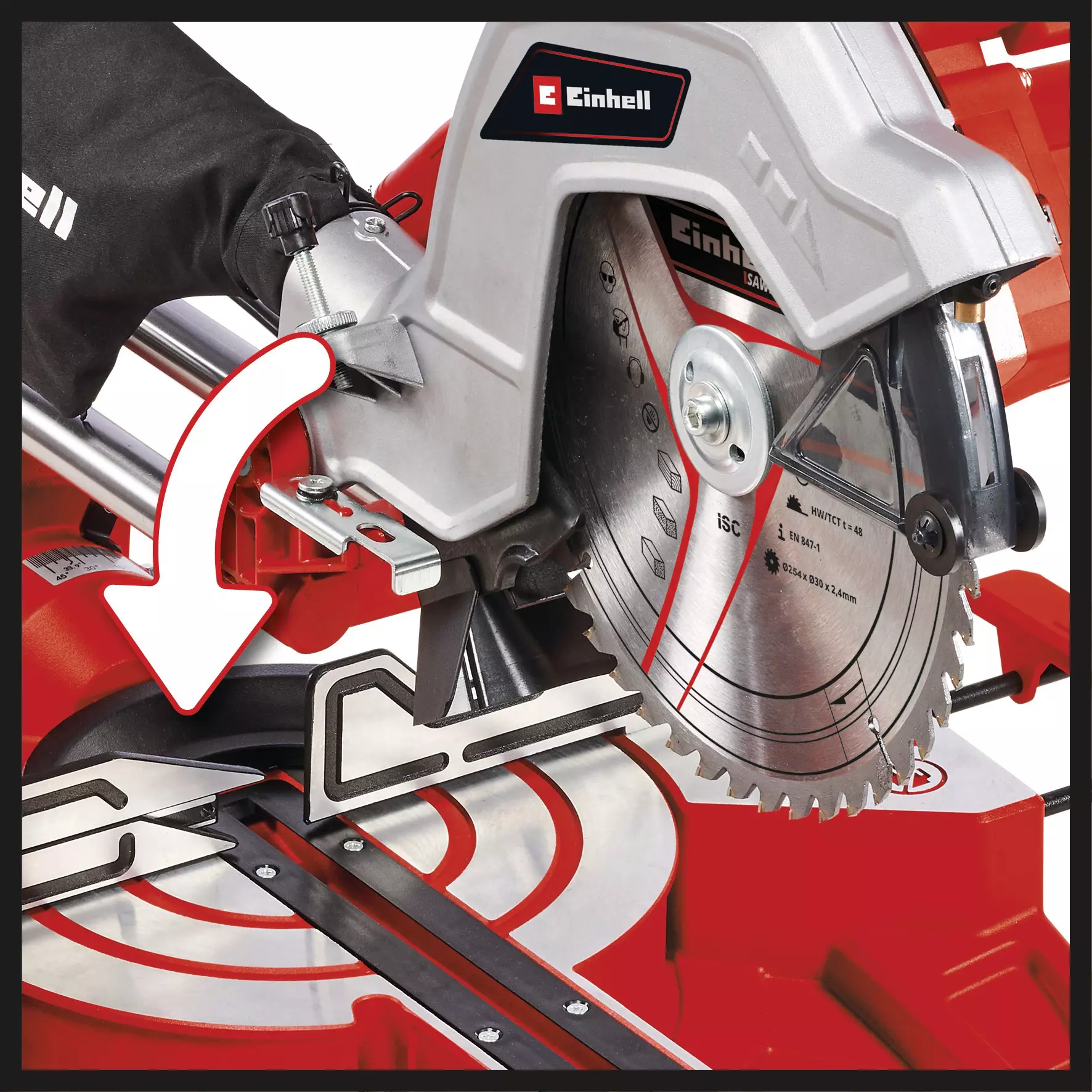

  • Saw head tilts to the left for perfect mitre cuts

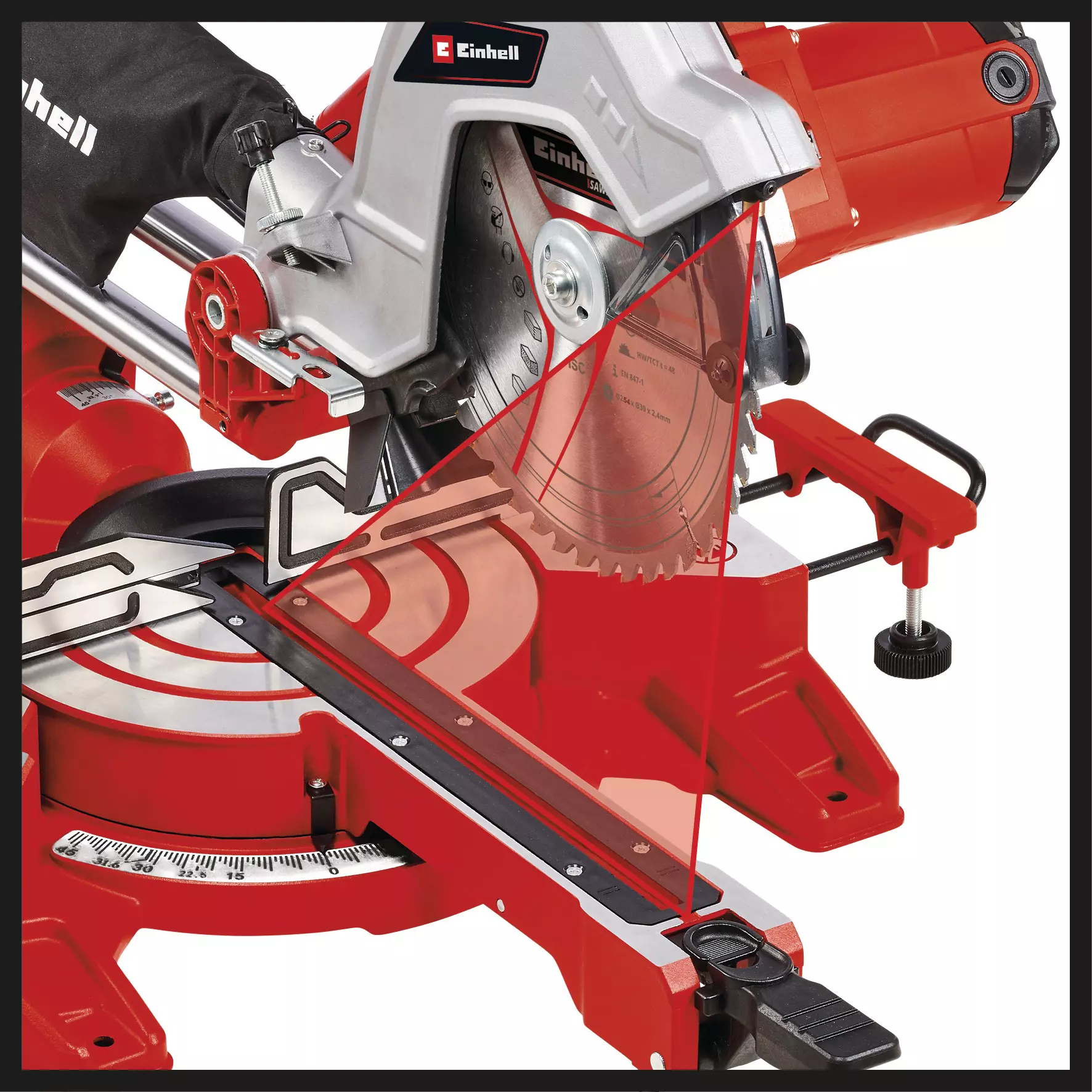

  • The integrated laser is a welcome help for exactly cutting
  • Workpiece supports on both sides for long workpieces
  • High-grade carbide-tipped precision saw blade for the best cuts

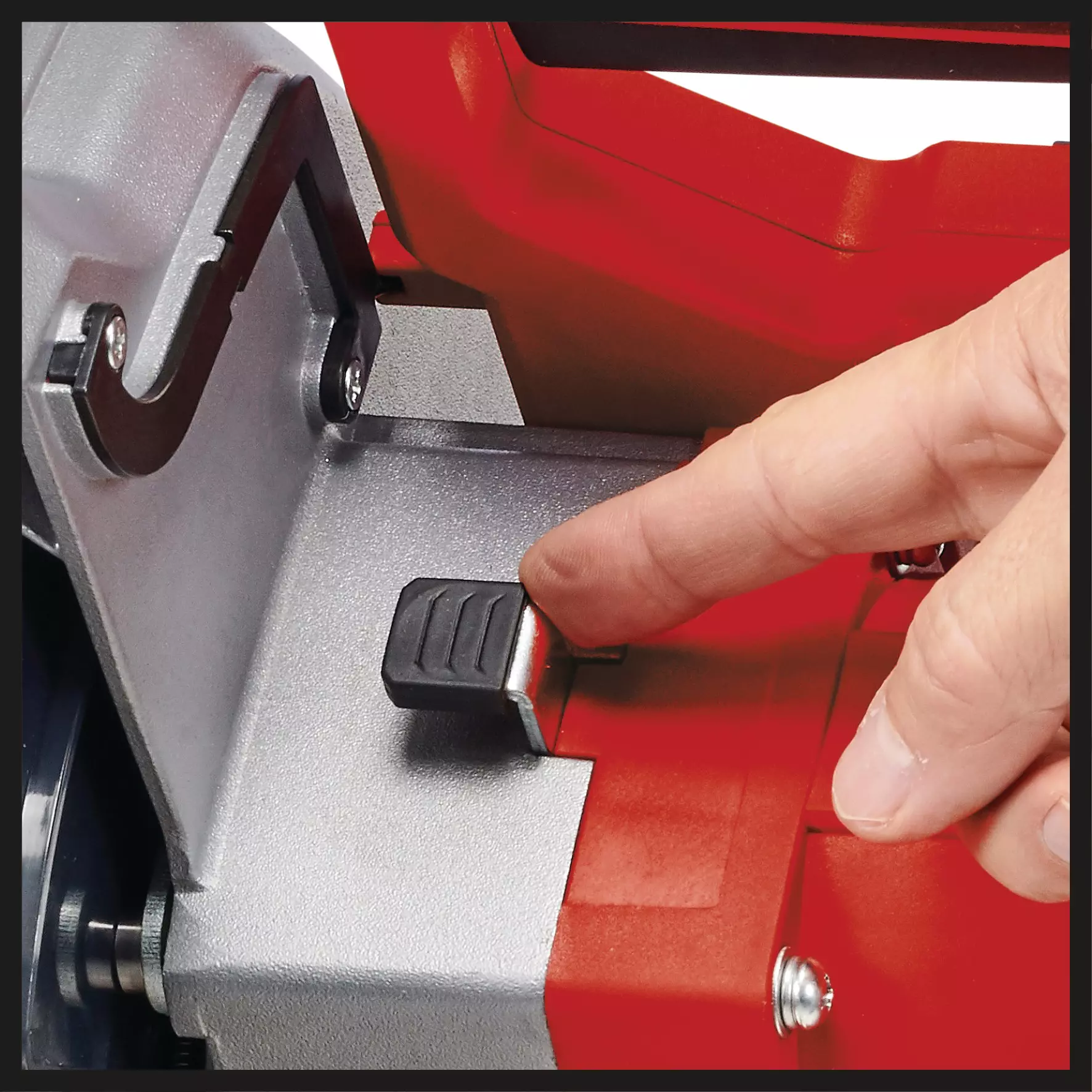

  • Spindle lock for an easy and fast saw blade change
  • Clamping device for holding the workpiece securely in position

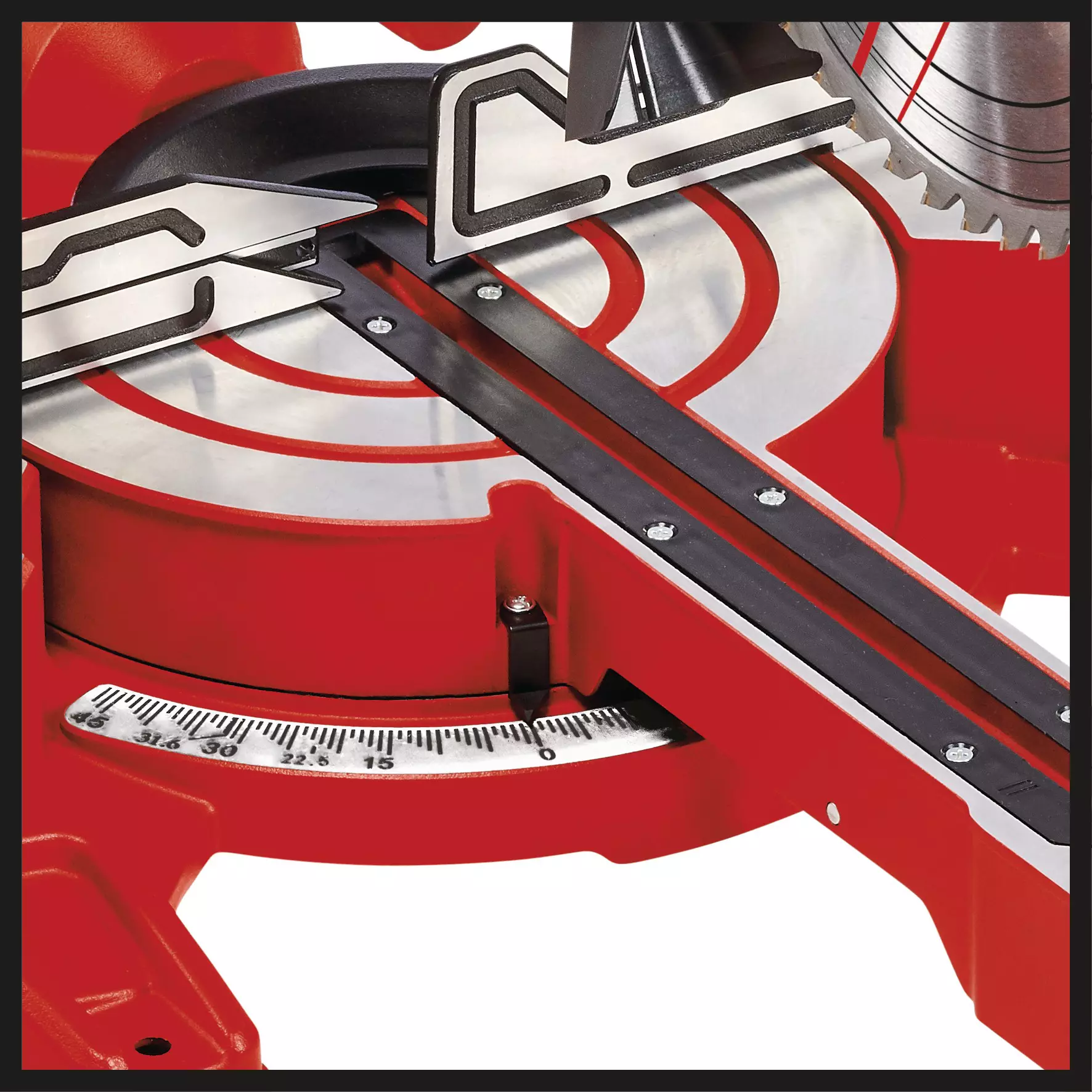

  • Well readable scales for the angles

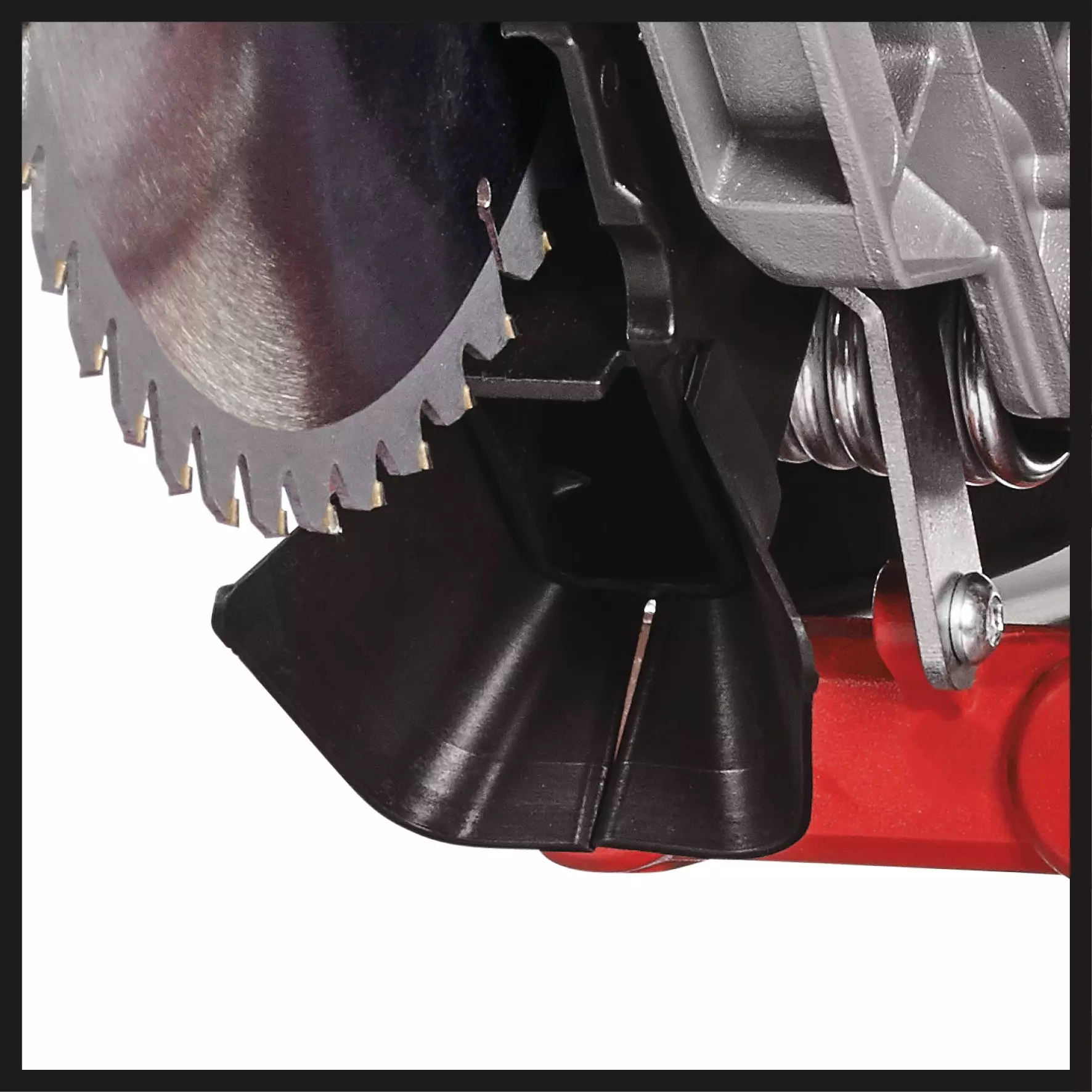

  • Dust funnel behind the saw blade for improved saw dust collection
See more information
einhell-classic-sliding-mitre-saw-4300385-productimage-101
Article description

With the Einhell TC-SM 254 drag, crosscut and miter saw the ambitious DIY enthusiast is ideally equipped for challenging jobs of workmanship in the home, workshed or garage. With a 1,900 W power rating the saw blade (Ø 254 external x ø 30 internal) has plenty of power to cut through the material you are working on. This sturdy saw has a smooth draw function for wide workpieces. For exact angular cuts it has turntable with precise angle setting. The turntable also has a range of locking positions for the most common angles. There are also easy-to-read scales for the angles and widths. For perfect miter cuts the saw head can be tilted to the left. The cutting width is up to 305 millimeters with a 90° setting and up to 215 millimeters with an angle of 45°. Do-it-yourself work is also made easy by the integrated cutting line laser and the practical supports for longer workpieces on the left and right. For securing the workpieces there is a handy clamping device. The high-grade, robust carbide saw blade delivers perfect cuts and is easy to change using the spindle lock. Behind the saw blade there is also a dust collector for removing sawdust more effectively. The extractor connection which is provided has a diameter of 36 millimeters, or the supplied dust bag can be used as an alternative.

Technical data

Mains supply220-240 V | 50 Hz
Power1800 W
Number of saw teeth48 Pieces
Max. power (S6 | S6%)1900 W | 25 %
Idle speed5000 min^-1
Saw blade254 mm x 30 mm
Mitre cut45 ° - 0 °
Swiveling range47 ° - 47 °
Cutting capacity 90° x 90°305 mm x 85 mm
Cutting capacity 90° x 45°215 mm x 85 mm
Cutting capacity 45° x 90°305 mm x 45 mm
Cutting capacity 45° x 45°215 mm x 45 mm
Diameter of suction adapter36 mm
Length780 mm
Width508 mm
Height425 mm
